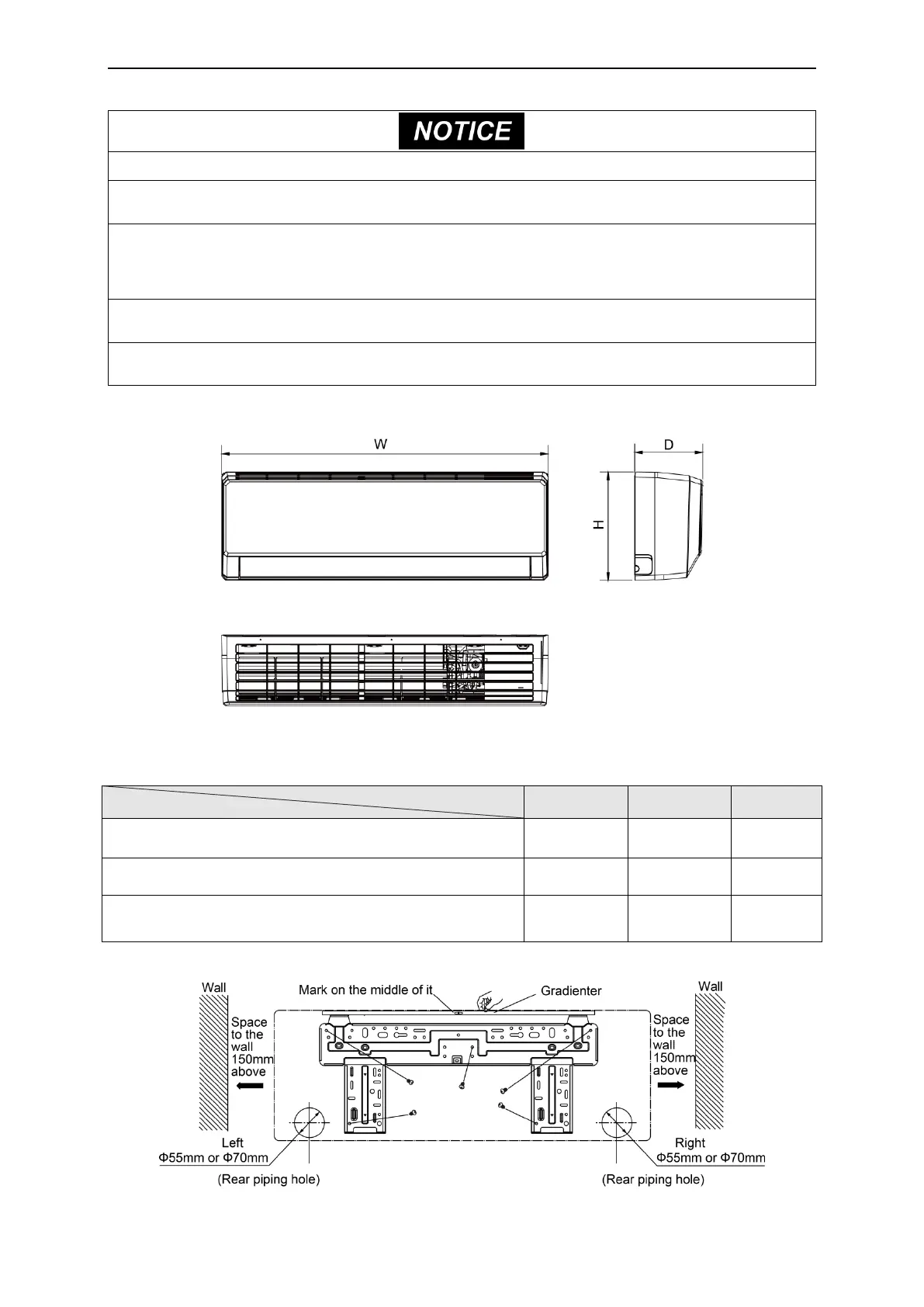

Page #10 background imageLoading...
Page #10 background image
Multi Variable Air Conditioners WALL Mounted Type Indoor Unit
5
(1)
Use copper wire only as unit’s power cord. Operating temperature should be within it s rated value.
(2)
If the power cord is more than 15m(590-1/2 inch) long, please increase properly the sectional area of
power cord to avoid overload, which may cause accident.
(3)
Above selection requirements: Power cord size is based on BV single-core wire (2~4pc) at
40°(10F)Cambient temperature when laying across plastic pipe. Air switch is D type and used at
40°C(104°F). If actual installation condition varies, please lower the capacity appropriately according to
the specifications of power cord and air switch provided by manufacturer.
(4)
Install cut-off device near the unit. The minimum distance between each stage of cut-off device should be
3mm(1/8 inch)(The same for both indoor unit and outdoor unit).
(5)
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
4 Installation Instructions
4.1 Installation of Indoor Unit
Fig 4.1
Below are dimensions of W, H, D for different models:
Unit:mm/inch
Item
Model
W H D
VEHW007C432P
VEHW009C432P
843
(33-1/5)
275
(10-5/6)
180
(7)
VEHW012C432P
VEHW018C432P
940
(37)
298
(11-3/4)
200
(7-7/8)
VEHW024C432P
1008
(39-2/3)
319
(12-5/9)
221
(8-5/7)
4.2 The installation of the rear panel
Fig 4.2
