Low ESP Fan Coil Indoor Unit
5
Notes:
① √: included, X: not included
② Please refer to the user manual of Wired Controller or Remote Controller for function
details.
3 Preparations for Installation
Note: Product graphics are only for reference. Please refer to actual products. Unspecified
measure unit is mm.

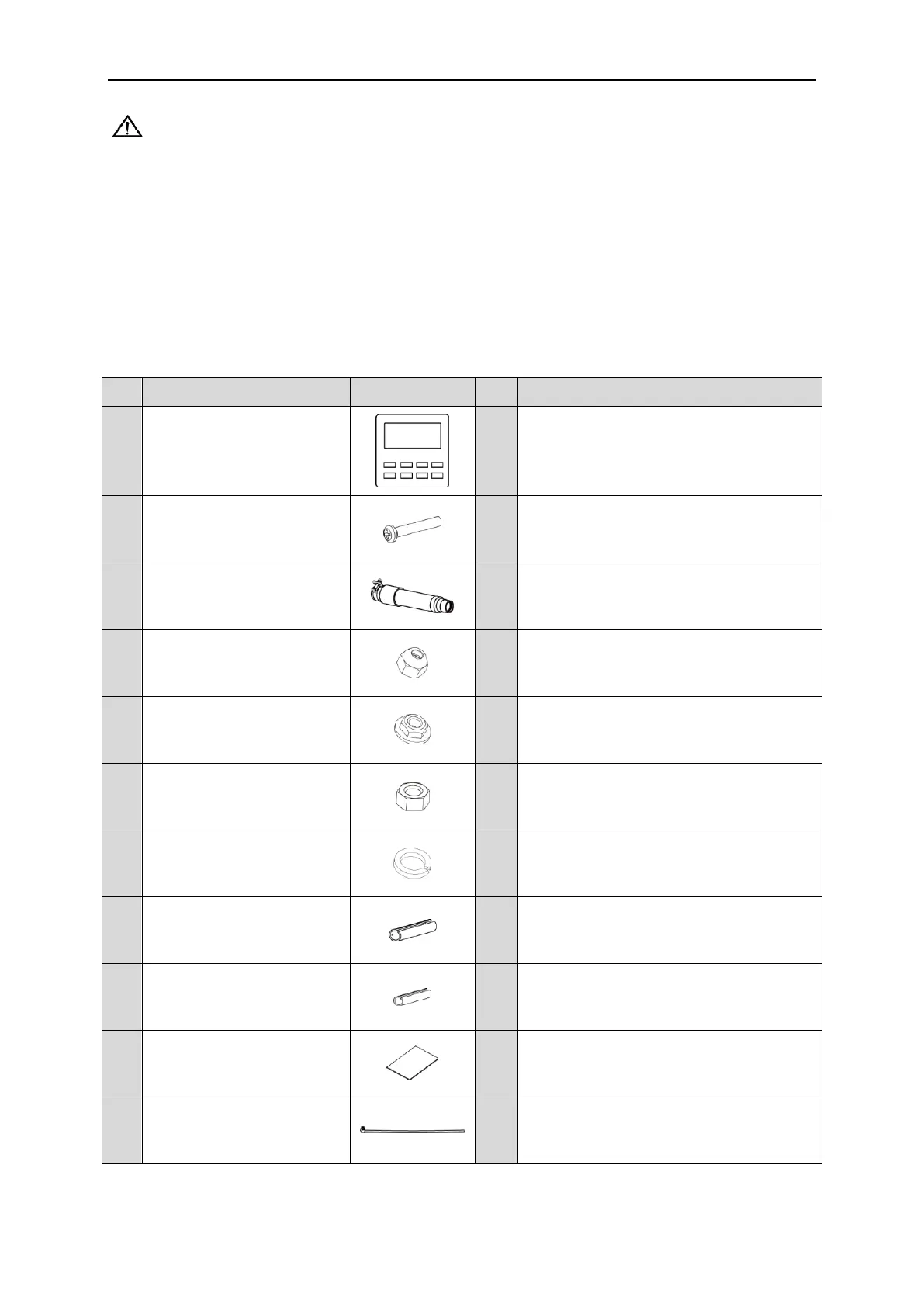

3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No. Name Appearance Q'ty Usage
1 Wired Controller 1 To control the indoor unit
2
M4X25 Screw
(Cross recessed small pan
head screw)
3 To fix the wired controller
3 Drain Hose Assembly 1 To connect with the hard PVC drain pipe
4 Special Nut 1
To be used for connecting the refrigerant
pipe
5 M10X8 Nut with Washer 4
To be used together with the hanger bolt for
installing the unit.
6 M10 Nut (M10X8.4 Nut) 4
To be used together with the hanger bolt for
installing the unit.
7
M10 Washer (Spring Washer
M10X2.6)
4
To be used together with the hanger bolt for
installing the unit.
8 Insulation 1 To insulate the gas pipe
9 Insulation 1 To insulate the liquid pipe
10 Sponge 2 To insulate the drain pipe
11 Fastener 8 To fasten the sponge
To Next Page
