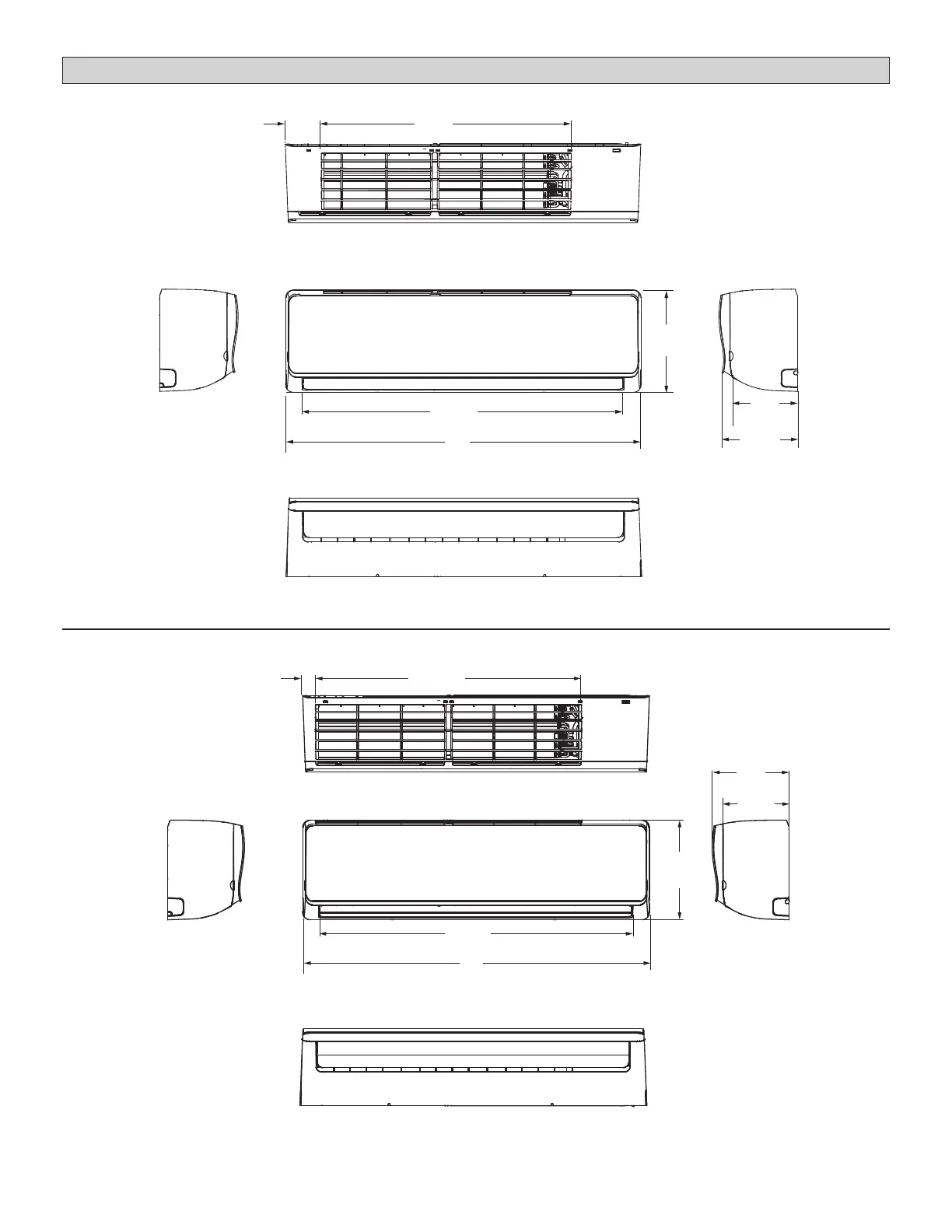

Unit Dimensions - inches (mm)
FRONT VIEW
TOP VIEW
SIDE VIEWSIDE VIEW
8 - 3/4
(222)
34-5/8
(879)
39
(991)
12-3/8
(314)
7-1/2
(191)
4-1/2
(114)
VWMB007H4, VWMB009H4, VWMB012H4, VWMB015H4, VWMB018H4
27
(686)
BOTTOM VIEW
SIDE VIEWSIDE VIEW
8 - 7/8
(225)
42-1/2
(1080)
47
(1194)
13-1/2
(343)
10-3/8
(264)
VWMB024H4, VWMB030H4
1-3/4
(44)
36
(914)
FRONT VIEW
TOP VIEW
BOTTOM VIEW
NOTE - Horizontal installation only.
