Page 42
XP17

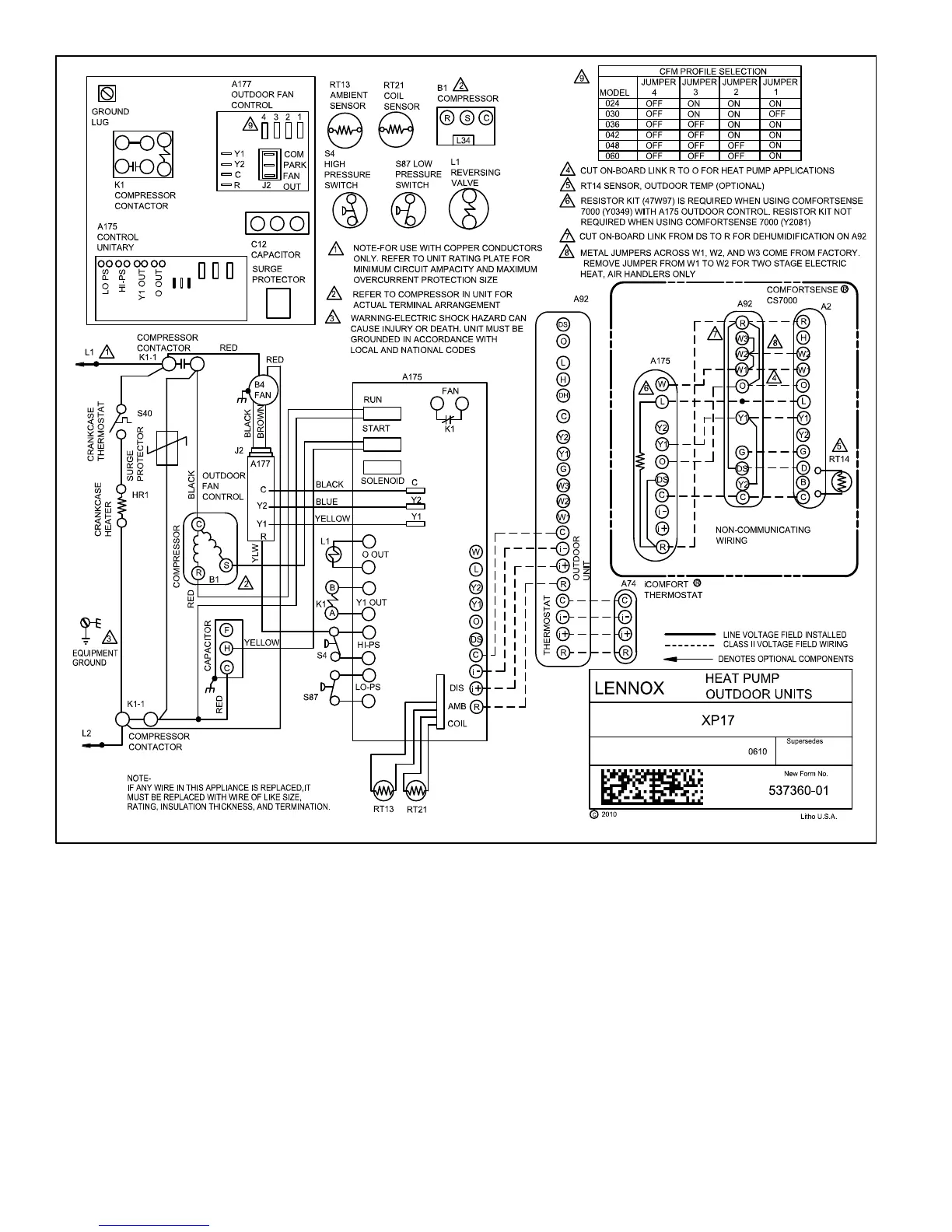

Figure 19. Typical XP17 Wiring (Non-Communicating, Surge Protection and A177 Fan Motor Control Wiring
Change) (XP17-XXX-230-02)
