Lenovo G485 User Manual

Lenovo G480/G485/G580/G585/G780 Hardware Maintenance
Manual
70
1120 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy card” on page 35
• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing
unit/Mini PCI Express Card slot compartment cover” on page 36
• “1040 Hard disk drive” on page 39
• “1050 Optical drive” on page 43
• “1060 DIMM” on page 45
• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 47
• “1080 Keyboard” on page 49
• “1090 Keyboard bezel” on page 52
• “1100 Speakers (Lenovo G480/G485/G580/G585)” on page 59
• “1110 System board” on page 60

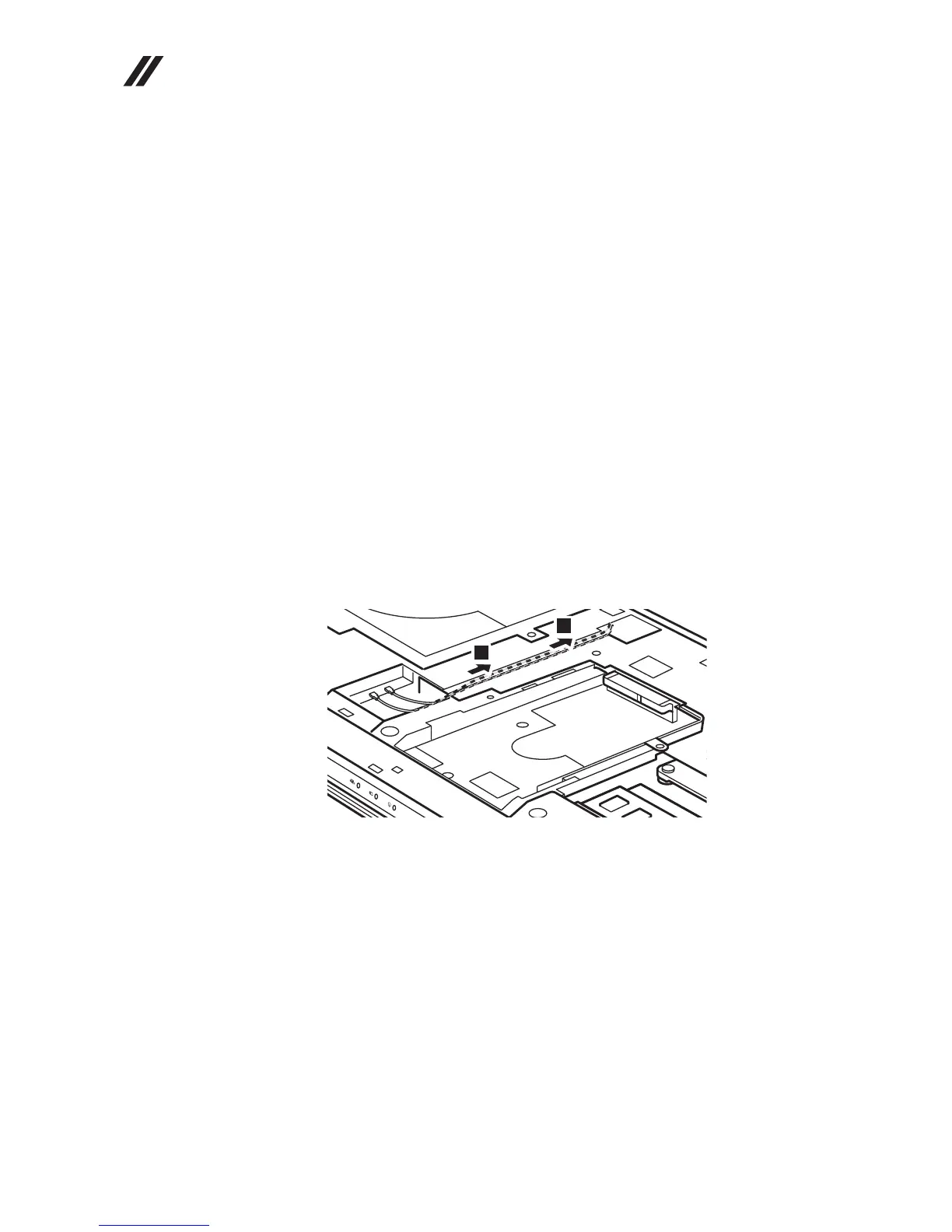

Figure 12. Removal steps of LCD unit
Pull out the two antenna cables from the guide hole in the direction shown by
arrows and release them from their guides in the direction shown by arrows
. Remove the four screws .
a
b c
1
1

Lenovo G485 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black, Brown
Processor cache	1 MB
Processor cores	2
Processor model	E-300
Processor family	AMD E
Processor frequency	1.3 GHz
Processor manufacturer	AMD
Motherboard chipset	-
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD speed	5400 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD±RW
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Display diagonal	14 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 6310
On-board graphics card family	AMD Radeon HD 6000
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Pointing device	Touchpad
Operating system installed	FreeDOS
Battery capacity	4400 mAh
Battery life (max)	- h
Number of battery cells	6

Weight and Dimensions

Depth	230 mm
Width	339 mm
Height	33 mm
Weight	2230 g
