Lenovo H505s User Manual

47
User Guide
Removing the front bezel
To remove the front bezel:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on a flat, stable
surface.

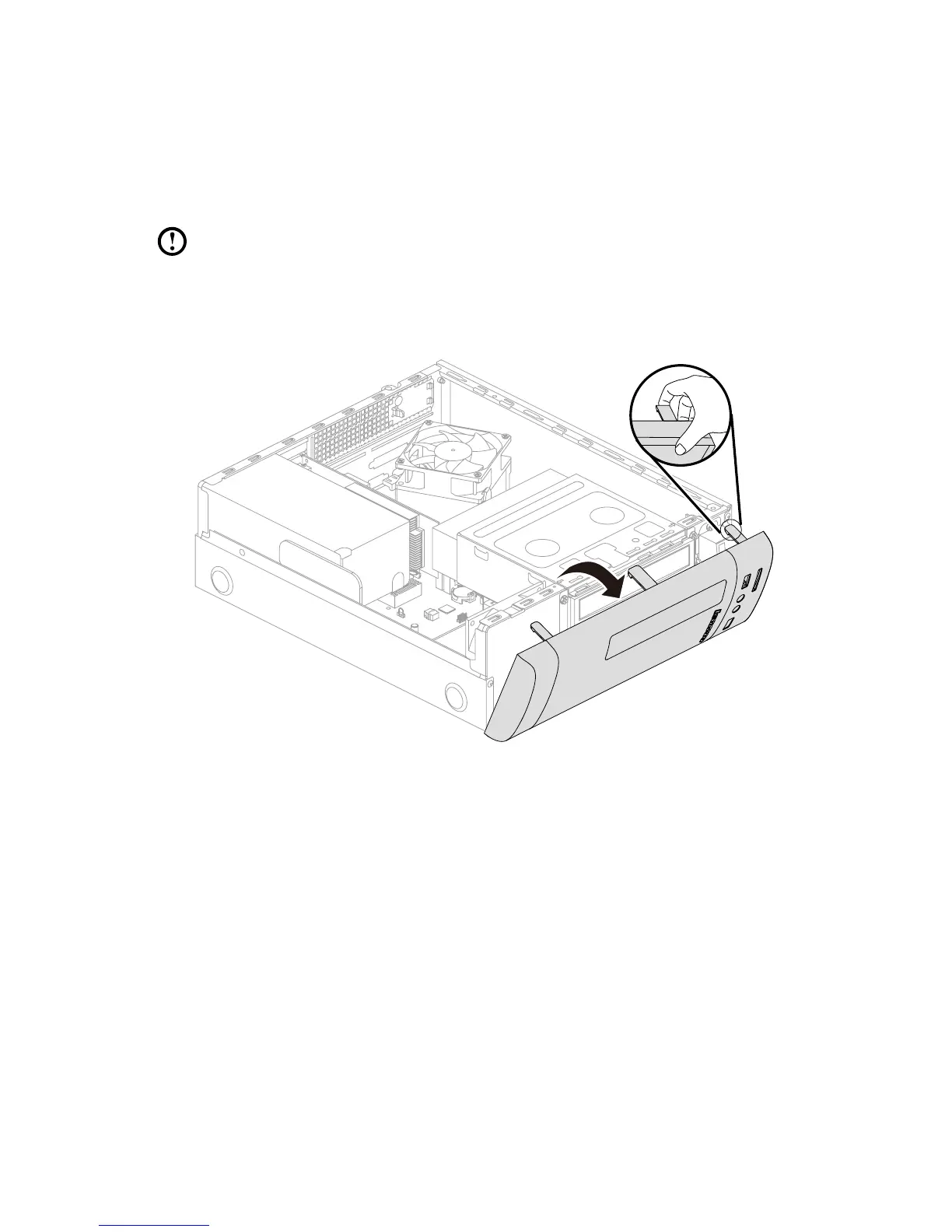

2. Remove the front bezel by releasing the three plastic tabs inside the chassis
and pushing the bezel outward as shown.
3. To reattach the bezel, align the plastic tabs on the bottom of the bezel with the
corresponding holes in the chassis, and then snap it into position at the bottom
and top of the chassis.
4. Refer to “Completing the installation”.

Lenovo H505s Specifications

General

Processor cache	1 MB
Processor cores	2
Processor family	AMD E
Processor socket	BGA 413 (Socket FT1)
Processor frequency	2 GHz
Processor cache type	L2
Processor manufacturer	AMD
Processor boost frequency	1.7 GHz
Number of processors installed	1
Memory slots	2x DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	Memory Stick (MS), MMC, MMC+, MS PRO, SD, SDHC, SDXC
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 7340
On-board graphics card family	AMD Radeon HD 7000
Operating system installed	Windows 8
Operating system architecture	64-bit
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
PS/2 ports quantity	0
USB 2.0 ports quantity	4
Chassis type	SFF
Product color	Black, Grey
Product type	PC
Motherboard chipset	AMD A68
Power consumption (typical)	43.33 W
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	385 mm
Width	105 mm
Height	305 mm
Weight	5000 g
Package depth	495 mm
Package width	390 mm
Package height	280 mm
Package weight	7300 g
