1060 Hard disk drive
Foraccess,removetheseFRUsinorder:
• “1010Opticaldrive”onpage35
• “1020Basecover”onpage36
• “1030Batterypack”onpage39
• “1040PCIExpressMiniCardforwirelessLAN”onpage41
• “1050DIMM”onpage43
Attention:
• Donotdroptheharddisk driveorapply anyphysicalshocktoit. The hard
disk drive is sensitive to physical shock. Improper handling can cause damage and
permanent loss of data.
• Before removing the drive, suggest the customer to backup all the information on
it if possible.
• Never remove the drive while the system is operating or in suspend mode.

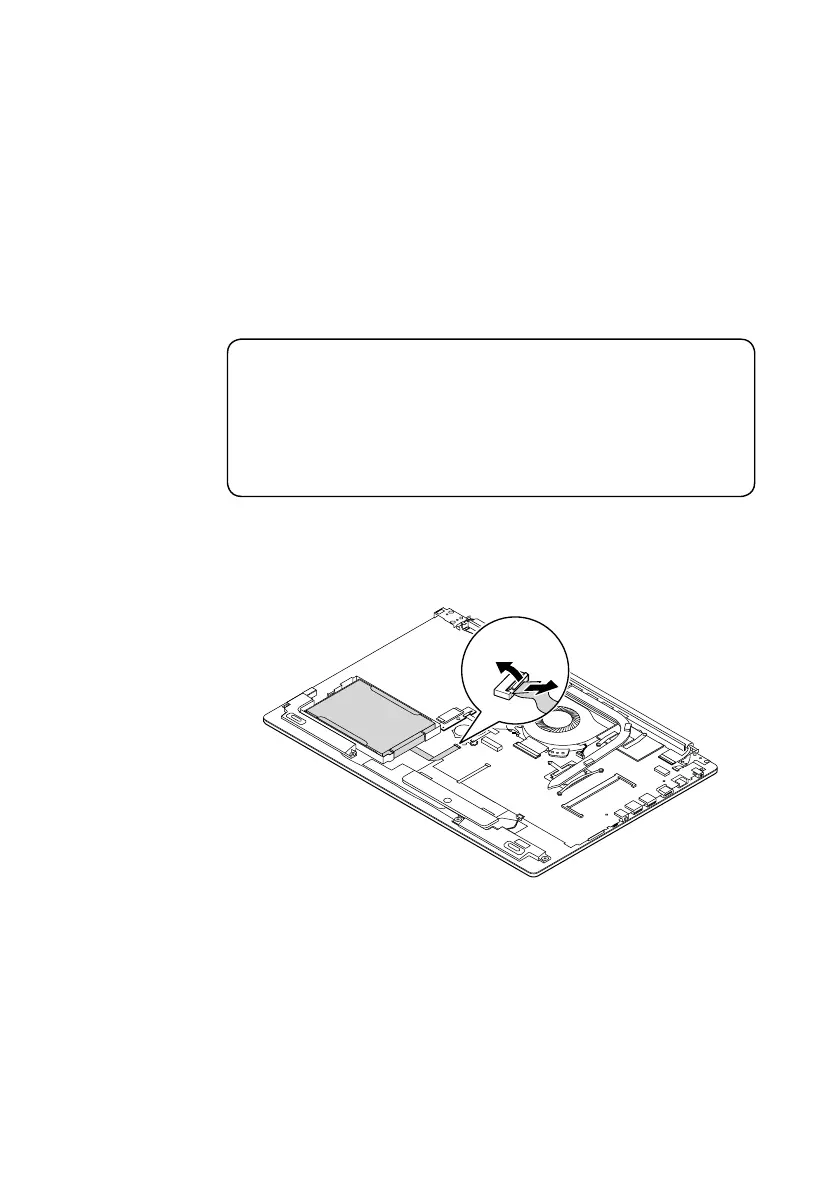

Figure 6. Removal steps of hard disk drive
DetachtheHDDboardconnectorinthedirectionshownbyarrows
1
and
2
.
RemovetheHDDboard.
b
a
When installing:MakesurethattheHDDboardconnectorisattachedrmly.

Lenovo ideapad 320-15IAP Specifications

General

Operating System	Windows 10 Home
Weight	2.2 kg (4.85 lbs)
Dimensions	378 x 260 x 22.9 mm (14.88 x 10.24 x 0.9 inches)
Wireless	802.11ac Wi-Fi, Bluetooth 4.1
Processor	Intel Pentium N4200
Display	15.6-inch, HD (1366x768)
RAM	4GB DDR4
Storage	500GB HDD
Graphics	Intel HD Graphics 505
Battery	2-cell, 30Wh
Ports	2 x USB 3.0, HDMI, SD card reader, headphone/mic combo
Color	Platinum Grey
