Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.

Step 2. Detach the fan cable and remove three screws. Remove the fan as show.

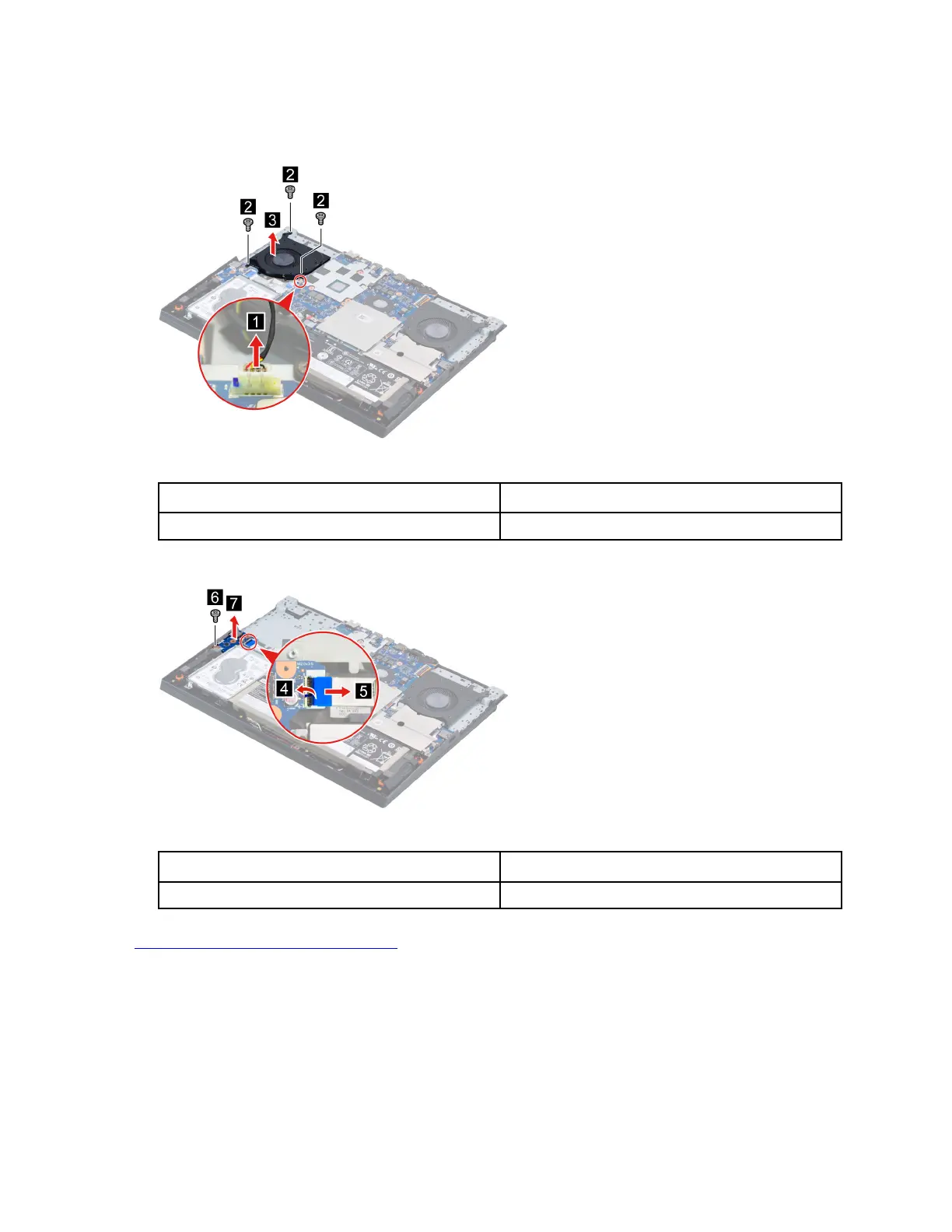

Figure 19. Remove the fan

Screw specifications Number of screws

M2 x L4.5 3

Step 3. Detach the I/O board cable and remove one screw. Remove the I/O board.

Figure 20. Remove the I/O board

Screw specifications

Number of screws

M2 x L3.5 1

Go to

https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

I/O board

Remove the Kensington lock

Make sure the following FRU (or CRU) has been removed.

“Remove the lower case” on page 32
