I/O board

Remove the Kensington lock

Make sure the following FRU (or CRU) has been removed.

“Remove the lower case” on page 50

Step 1. Disconnect the battery pack cable from the system board.

Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.

Step 2. Remove two screws and then remove the Kensington lock.

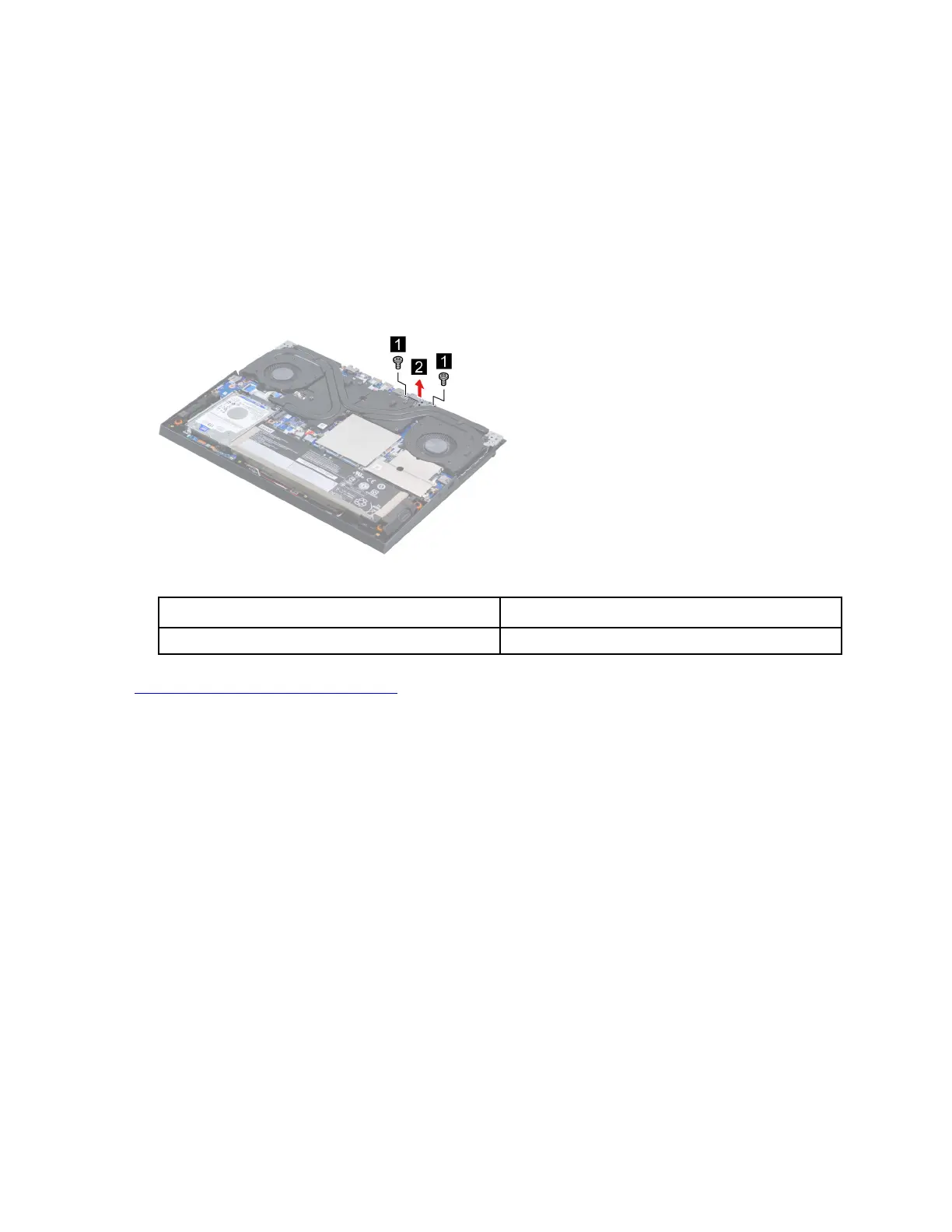

Figure 55. Remove the Kensington lock

Screw specifications Number of screws

M2 x L7 2

Go to

https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Kensington lock

Remove the RTC battery

Make sure the following FRUs (or CRUs) have been removed.

“Remove the lower case” on page 50

“Remove the battery pack” on page 53

Step 1. Disconnect the touch pad cable and the RTC battery cable from the system board. Remove the

RTC battery.
