Lenovo Legion 7 16ACHg6 User Manual

Removable tape
Remove the camera cable
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 44
“Remove the LCD bezel” on page 47
“Remove the hinge cover” on page 48
“Remove the LCD panel” on page 49
“Remove the camera bracket” on page 52

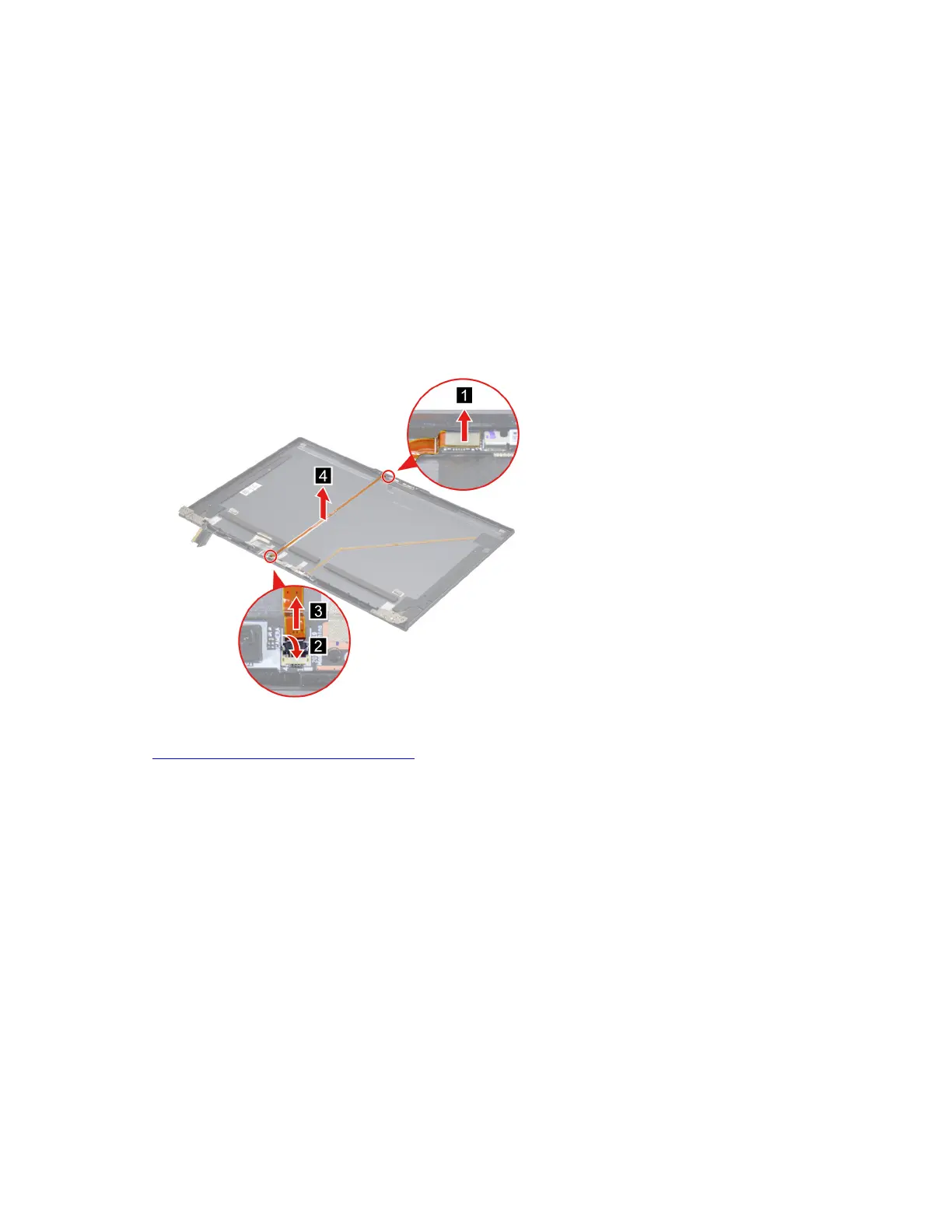

Step 1. Detach the camera cable connectors and then remove the camera cable.
Figure 45. Remove the camera cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Camera cable
Removable tape
Remove the camera
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 44
“Remove the LCD bezel” on page 47
“Remove the hinge cover” on page 48
“Remove the LCD panel” on page 49
“Remove the camera bracket” on page 52
Step 1. Disconnect cable connected to the camera and then remove the camera.
Chapter 4. Removing a FRU or CRU 53

Lenovo Legion 7 16ACHg6 Specifications

General

RAM	Up to 32GB DDR4 3200MHz
Battery	80Wh
Operating System	Windows 10 Home
Processor	AMD Ryzen 7 5800H / Ryzen 9 5900HX
Graphics	NVIDIA GeForce RTX 3080
Display	16" WQXGA (2560 x 1600), IPS, 165Hz
Storage	Up to 2TB SSD
Weight	2.5 kg
Audio	2 x 2W Harman speakers, Nahimic Audio
Webcam	720p with E-shutter
Keyboard	RGB backlit
Ports	HDMI 2.1
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.1
