LenovoTAB410
37
1040 Antenna Sub Board
Foraccess,removetheseFRUsinorder:
• “1010BackCover”onpage 27
• “1020Battery”onpage 28

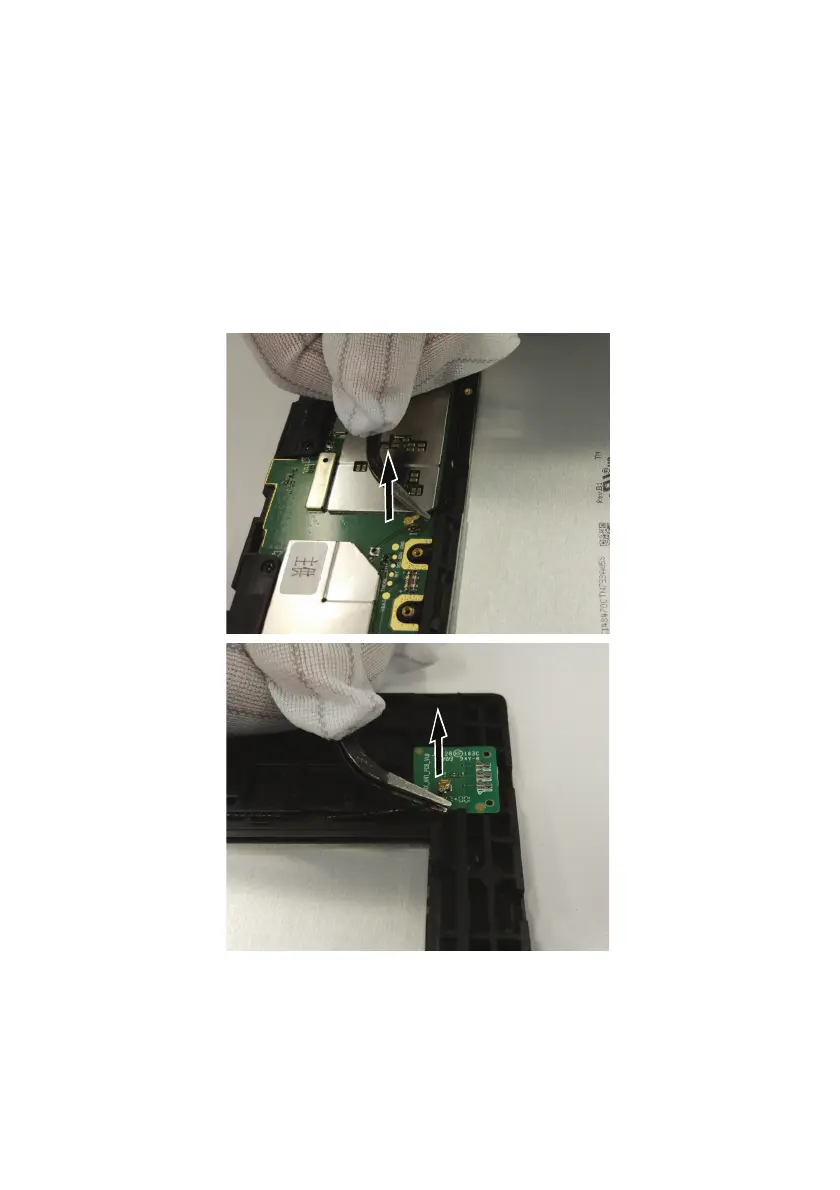

Figure4.Removalstepsofantennasubboard
SeparatetheRFcableandmainboardfromtheantennasubboardinthe
directionofthearrow.
