3. Remove the optical drive. See “Optical drive” on page 66.
4. Remove the optical drive holder. See “Optical drive holder” on page 69.
5. Remove the system board shield. See “System board shield” on page 71.
6. Depending on your computer model, refer to one of the following to replace the storage drive and the
storage drive bracket.
• M70a

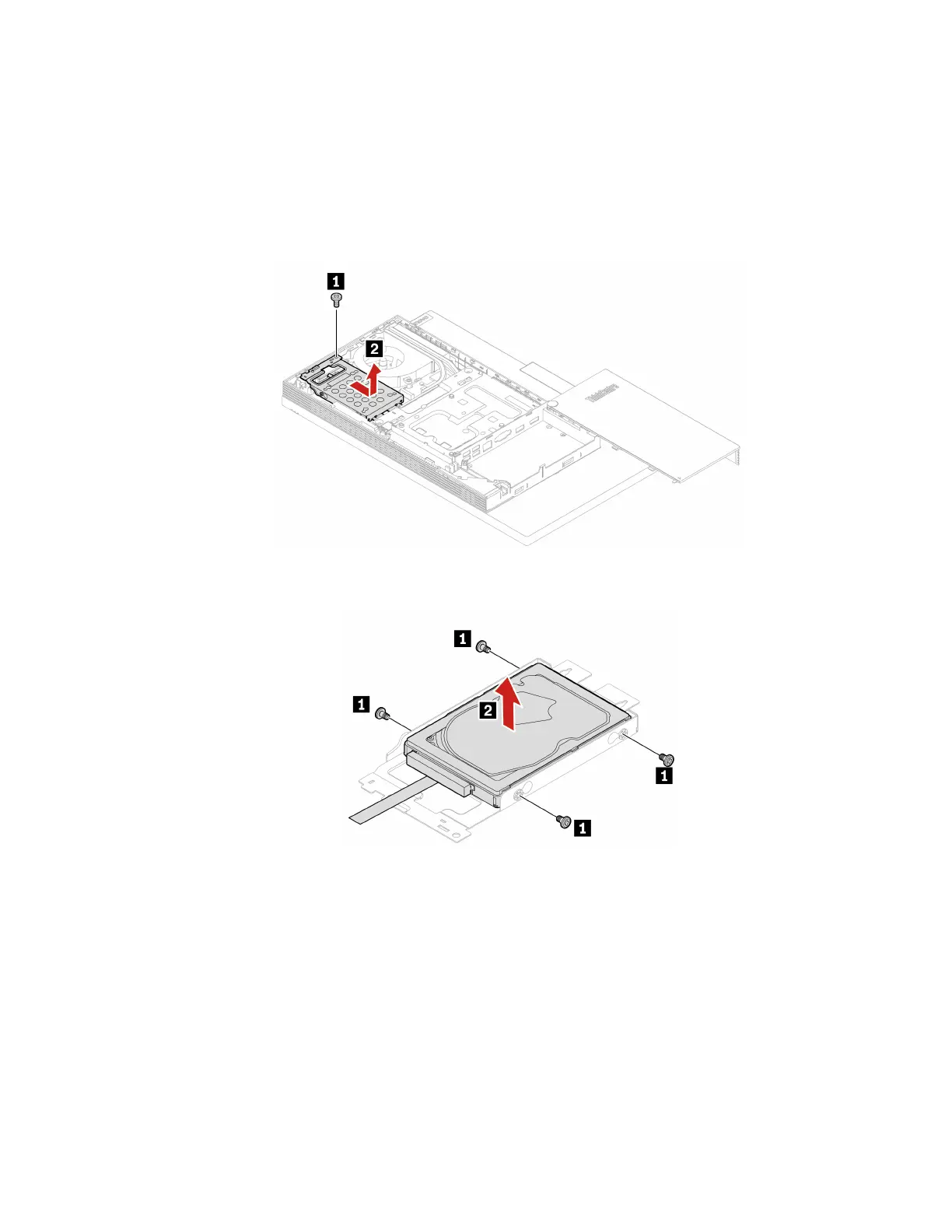

Figure 40. Removing the storage drive and the bracket
Figure 41. Removing the storage drive from the bracket
Chapter 6. Hardware removal and installation 79
