Lenovo ThinkCentre M910s - System Board

Overview 7

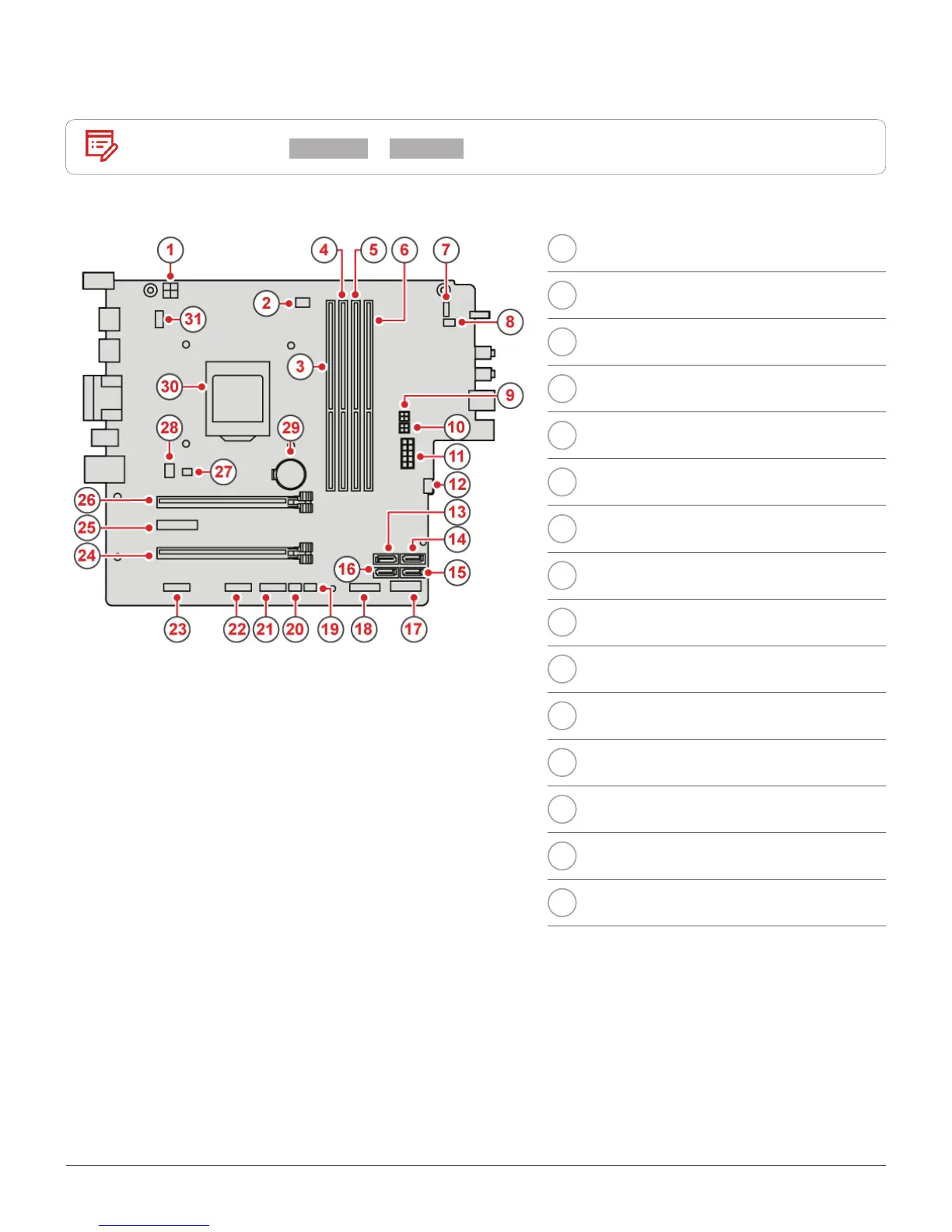

System board
Note
See Front view or Rear view for additional component descriptions.
1
4-pin power connector
2
Microprocessor fan connector
3
Memory slot (DIMM1)
4
Memory slot (DIMM2)
5
Memory slot (DIMM3)
6
Memory slot (DIMM4)
7
Power button board connector
8
Internal speaker connector
9
SATA power connector
10
SATA power connector
11
10-pin power connector
12
Auxiliary fan connector
13
SATA 3.0 connector
14
eSATA connector
15
SATA 3.0 connector
