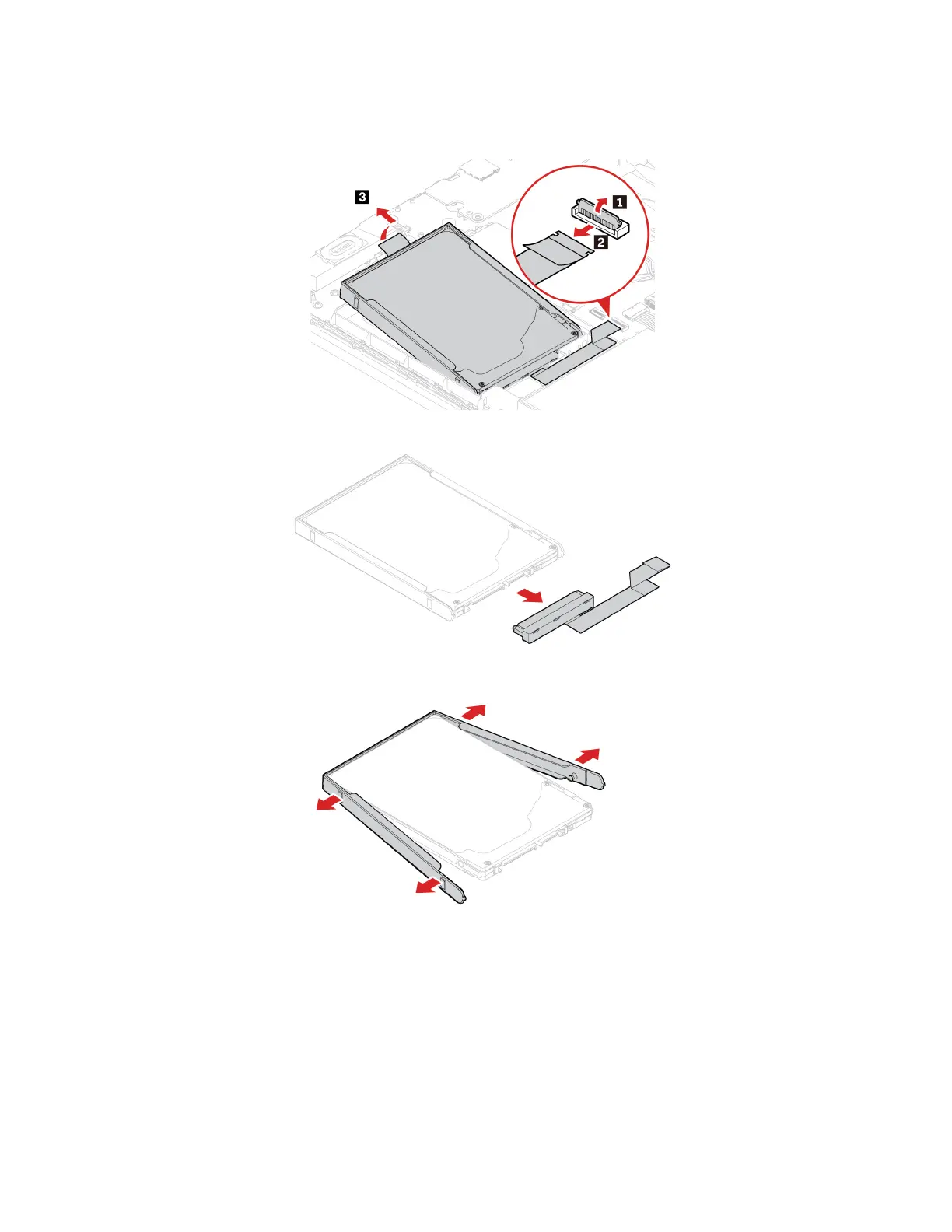

5. Disconnect the hard-disk-drive cable from the system board. Lift the tab and remove the hard disk drive
together with its bracket.
6. Detach the cable from the hard disk drive.
7. Detach the bracket from the hard disk drive.
42 E590 and R590 User Guide
