1130 LCD assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 85
v “1040 Keyboard” on page 94
v “1050 Palm rest or palm rest with fingerprint reader” on page 97
v “1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v “1080 PCI Express Mini Card for wireless WAN” on page 105
v “1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v “1100 Keyboard bezel” on page 109

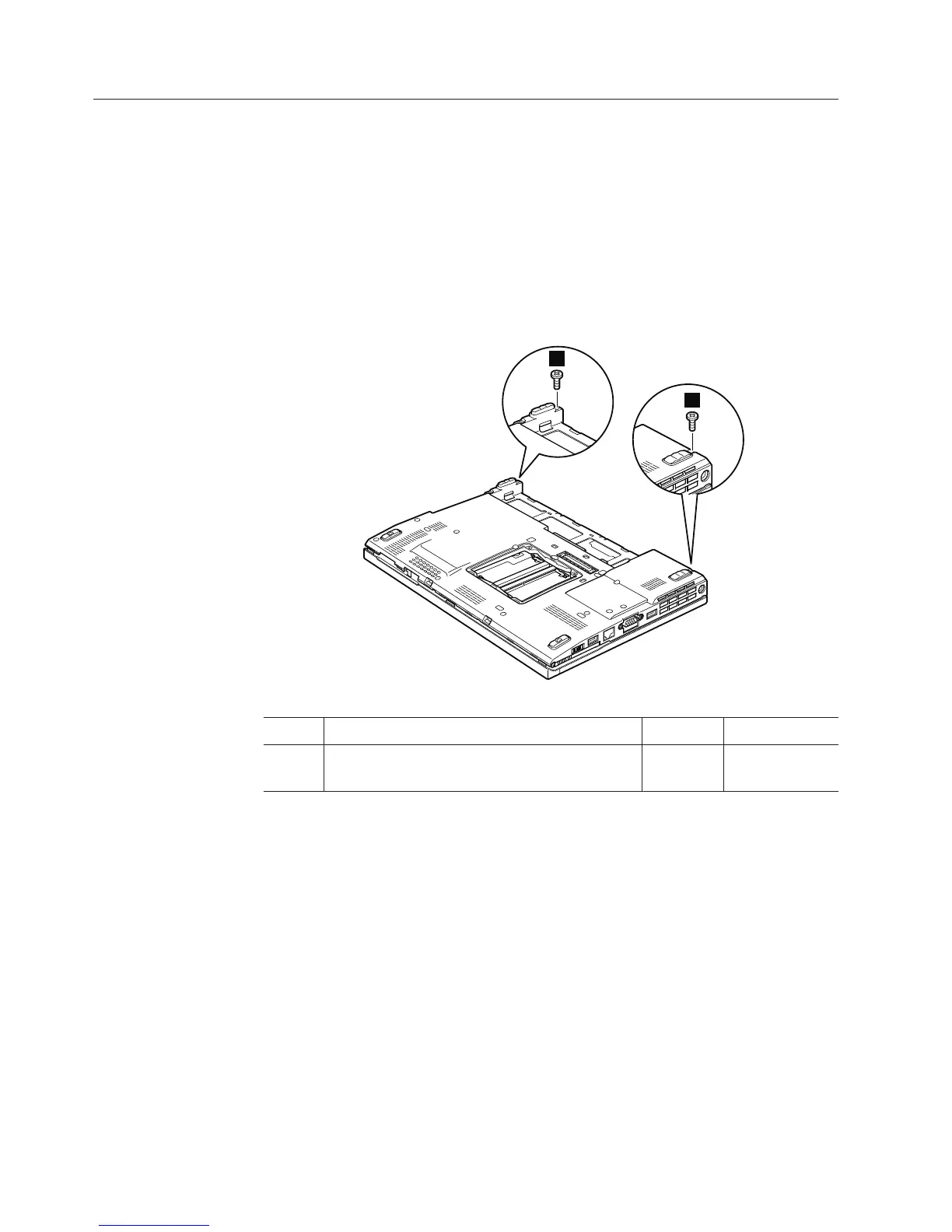

Table 21. Removal steps of LCD assembly
1
1
Step Screw (quantity) Color Torque
1 M2 × 5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
114 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
