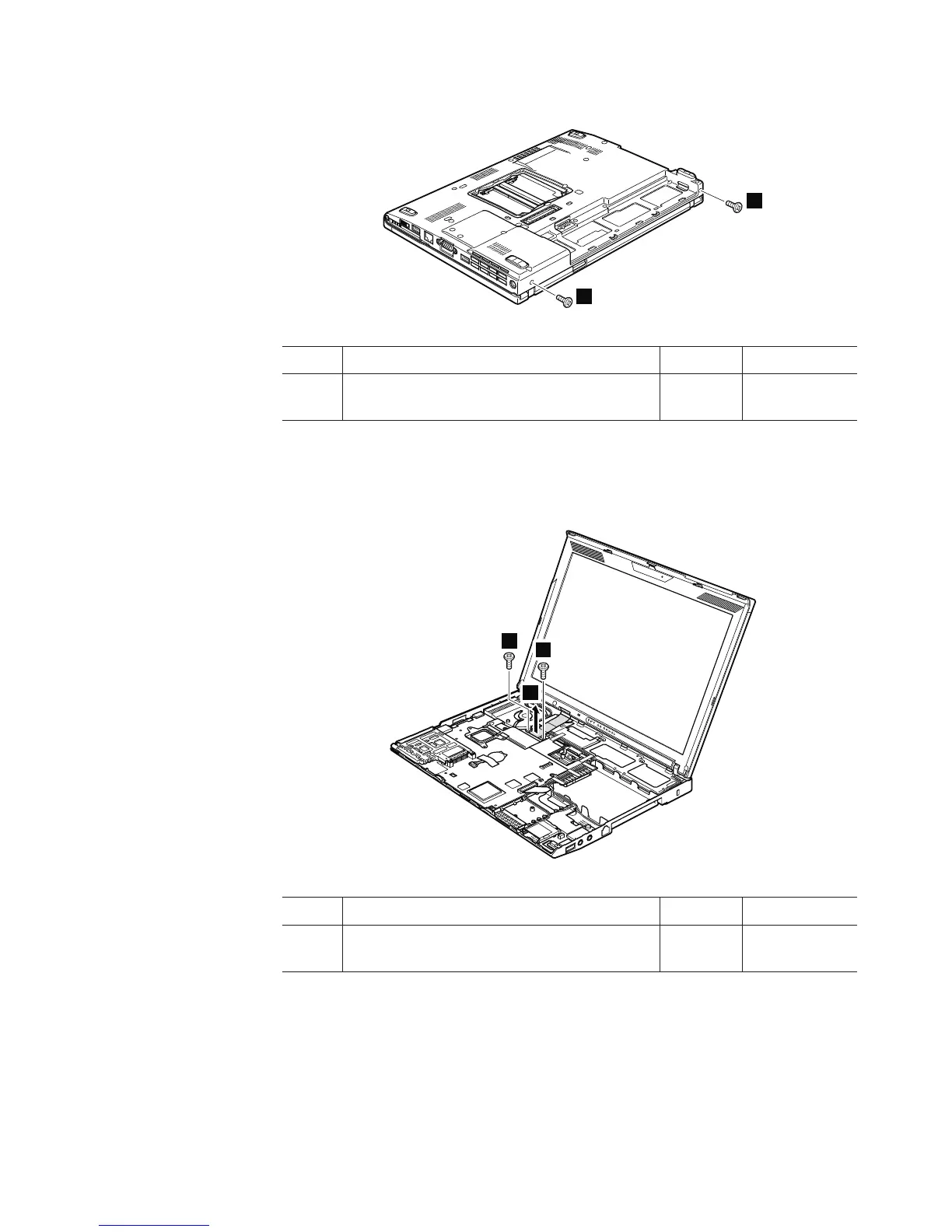

Table 21. Removal steps of LCD assembly (continued)
2
2
Step Screw (quantity) Color Torque
2 M2 × 5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Before step 3, strip off the tapes securing the antenna cables, and release the
cables from the cable guides of the frame.
3
4
3
Step Screw (quantity) Color Torque
3 M2 × 5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 115
