Wheninstalling:
Whenyouinstallthecard,plugtheredcableintothejacklabeledMAINonthecard,andthebluecableinto
thejacklabeledAUX.

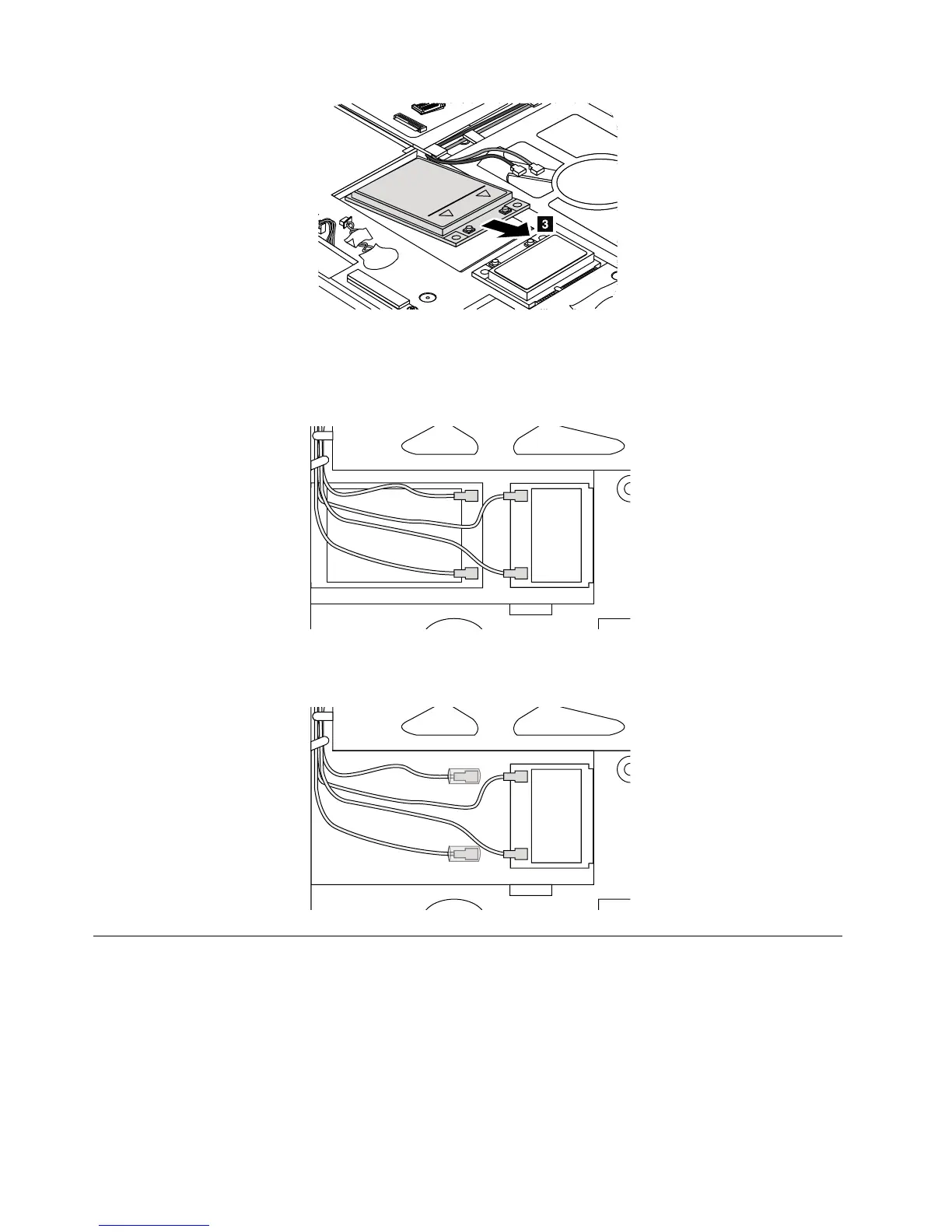

IfthecomputeryouareservicingisthewirelessWAN-readymodel,puttheantennacablesinthecable
protectiontubeandplacethemasshowninthefollowinggure.
1110Bluetoothdaughtercard
Foraccess,removetheseFRUsinorder:
•“1020Batterypack”onpage63
•“1060Keyboard”onpage68
•“1070Palmrest”onpage71
78HardwareMaintenanceManual
