Lenovo ThinkPad X41 User Manual

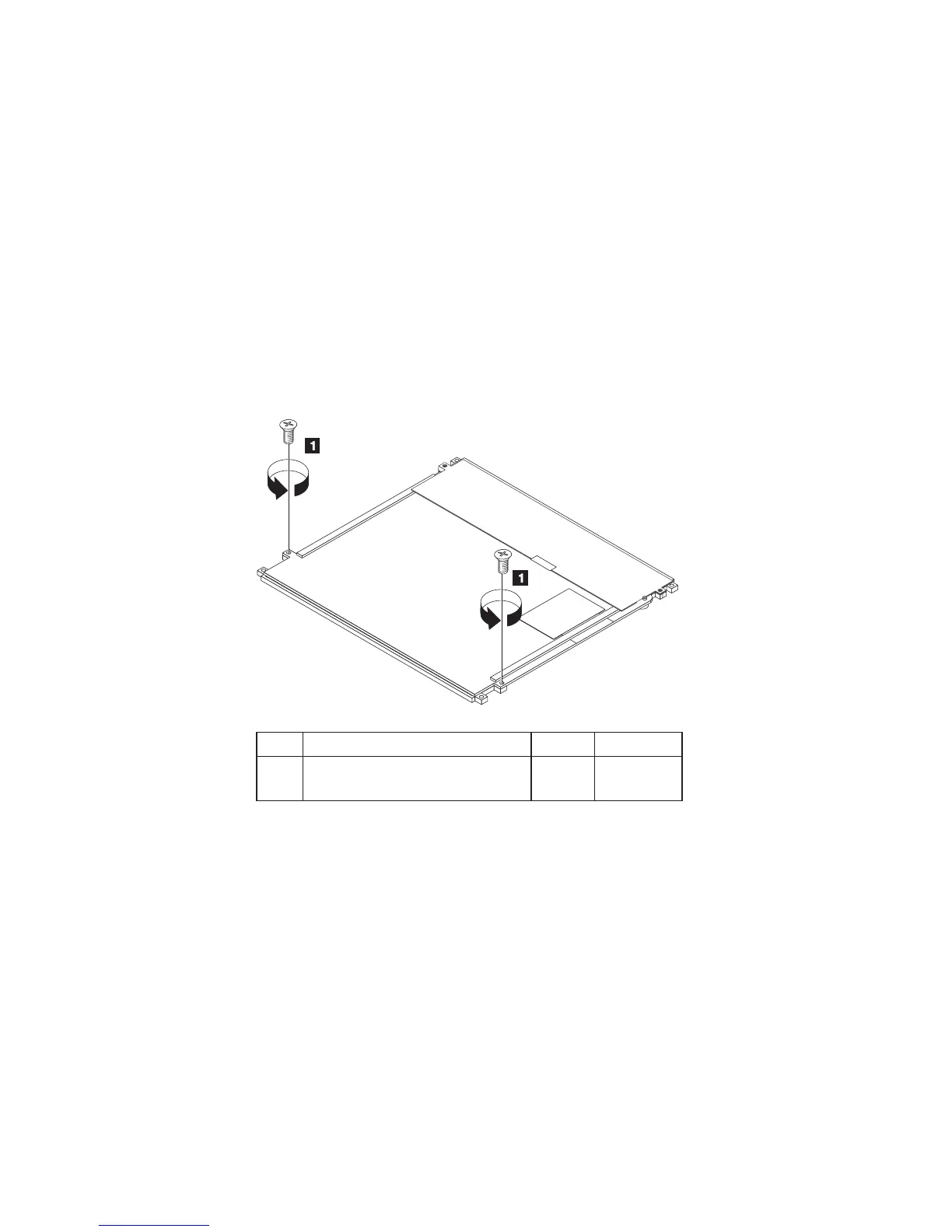

2060 Digitizer assembly
For access, remove following FRUs, in order:
v “1010 Battery pack” on page 72
v “1030 Hard disk drive” on page 76
v “1040 DIMM cover” on page 78
v “1070 MDC-2” on page 81
v “1110 Backup battery” on page 89
v “1090 Keyboard” on page 83
v “1100 Upper case” on page 86
v “1120 LCD assembly” on page 90
v “1020 Hinge cap” on page 73
v “2010 LCD bezel” on page 100
v “2020 Hinge” on page 103
v “2030 Inverter card” on page 105
v “2040 LCD” on page 107
Step Screw (quantity) Color Torque
1 M2 × 2.5 mm, wafer-head,
nylon-coated (2)
Silver 0.098 Nm
(1
kgfcm)
(continued)
Removing and replacing a FRU
110 MT1866/1867/1869

Lenovo ThinkPad X41 Specifications

General

Bundled software	Access program, ThinkVantage Access Connections, Norton AntiVirus 2004 with 90 days of virus definition upgrades, PC Doctor diagnostics, ThinkVantage Rescue and Recovery, Adobe Acrobat Reader
Operating system installed	Windows XP Professional
Display diagonal	12.1 \
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3
HDD speed	4200 RPM
Optical drive type	No
Total storage capacity	40 GB
Compatible memory cards	SD
Processor frequency	1.6 GHz
Processor manufacturer	Intel
Processor front side bus	400 MHz
Internal memory	0.5 GB
Internal memory type	DDR2-SDRAM
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 900
Maximum graphics card memory	0.128 GB
Modem speed	56 Kbit/s
Dimensions (WxDxH)	268 x 211 x 21 mm
Charging port type	DC-in jack
Modem (RJ-11) ports	1
USB 2.0 ports quantity	2
Parallel ports quantity	0
CardBus PCMCIA slot type	Type II
Audio system	SoundMAX
Keyboard type	Full size
Pointing device	Trackpad
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet/IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/Bluetooth
Battery life (max)	2.5 h
Number of battery cells	4
Storage drive type	ATA-100 (Enhanced IDE)
Cable lock slot type	IBM

Weight and Dimensions

Depth	211 mm
Width	268 mm
Height	21 mm
Weight	1290 g
