7
8

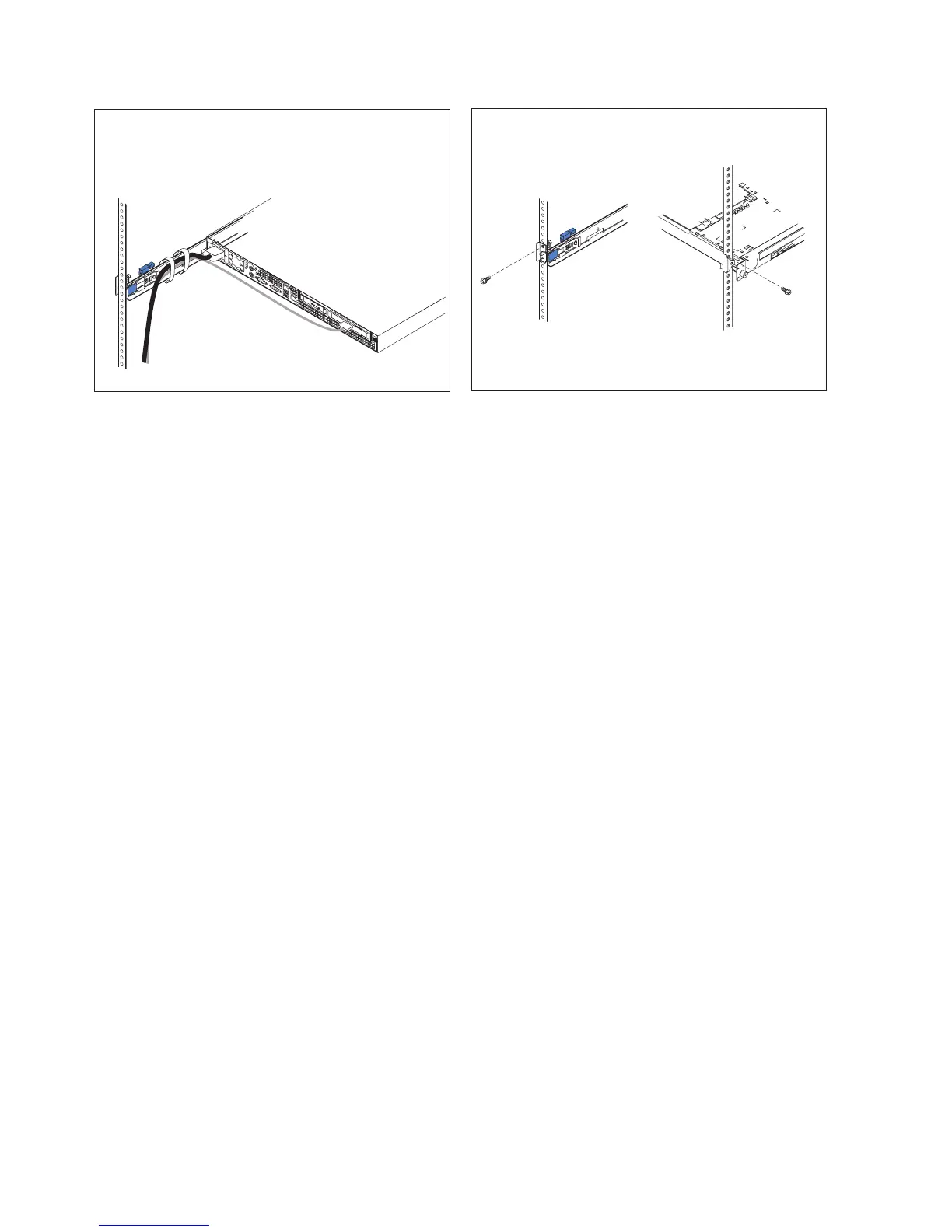

Attach cables to the rear of the server (such as
keyboard, mouse, and monitor cables, if required).
Route the cables to the left corner of the server (as
viewed from the rear) and use the cable straps to
secure the cables to the slide rails.
Before you transport the rack cabinet to another
location with the server installed, you must secure
the server to the rack. If necessary, disconnect the
cables from the rear of the server; then, slide the
server out of the rack 150 mm (6 inches) and insert
the M6 screws in each slide rail. Then, secure the
server to the rack cabinet with the M6 screws.
Ensure the rails are fully extended to the rear of the
rack cabinet and that the shipping brackets are
installed. Go to steps 4, 5, and 6 for instructions.
To remove the server from the rack, reverse these instructions. Store this information with your server
documentation for future use.
4
