Align the pins 1 on the front rail-locking carrier
to the front mounting flange. If you adjusted the
rail length, push the rail-locking carrier back toward
the rear of the slide rail to align the slide rail with
the mounting flange 3. Then, press the tab 2 to
secure the front of the slide rail to the front
mounting flange.
Important: Ensure that the pins 1 are fully
extended through the mounting flange and the slide
rail.
Repeat steps 1 and 2 for the other slide rail.
4 Pins extended through the mounting flange and
slide rail
5 Pins not extended through the mounting flange
and slide rail
If you plan to transport the rack cabinet to another
location with the server installed, remove the large
screw1 and discard it. Remove and save the front
screw 2and loosen the other two screws3. Then,
fully extend the rail and insert the screw you saved
into the position where the large screw 1 had
been located. Tighten all screws to secure the rail.
Repeat this step for the other rail.
If you do not plan to transport the rack cabinet to
another location with the server installed, continue
with step 5.
5
6

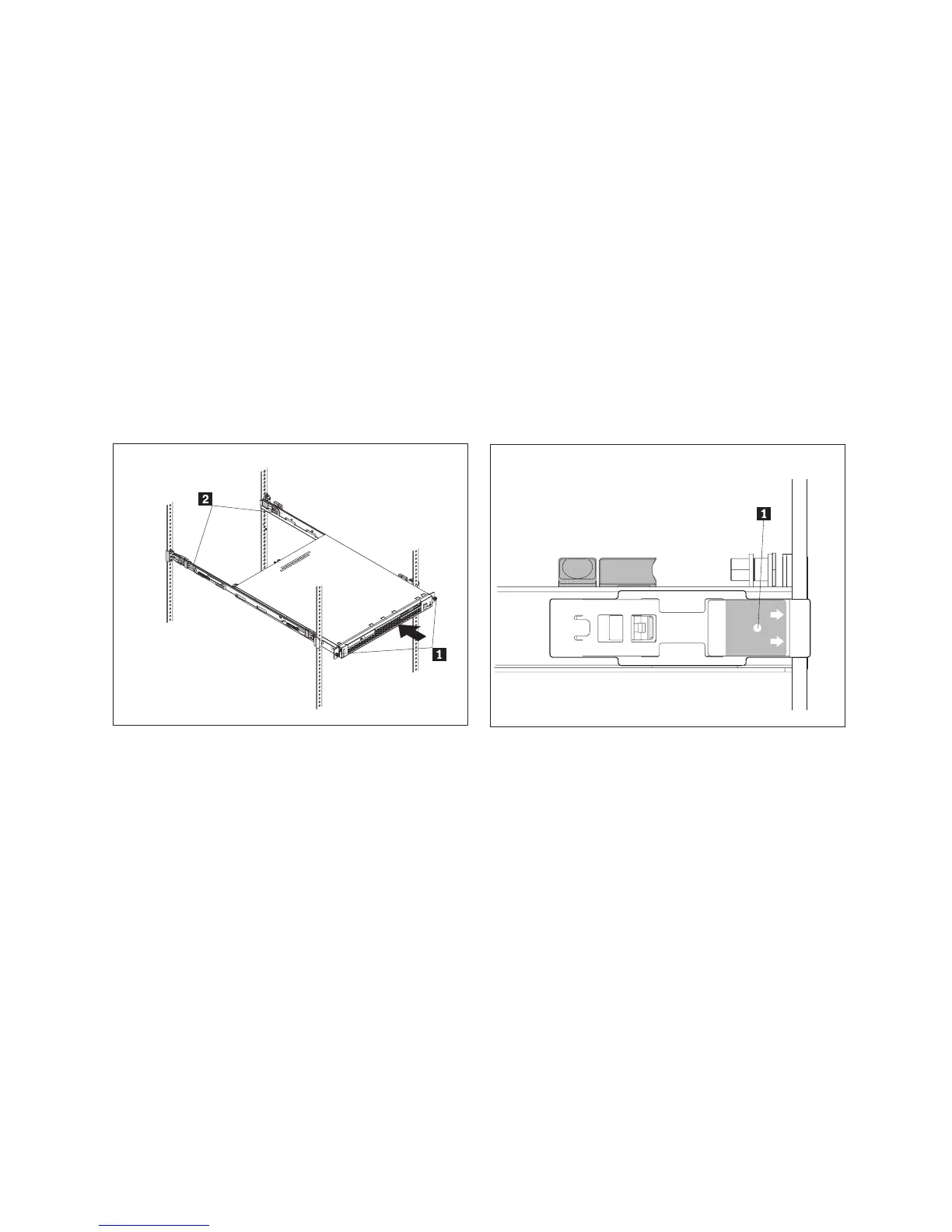

Align the server on the slide rails and push the
server fully into the rack cabinet. Secure the server
to the front mounting flanges with the captive
thumbscrews 1.
Note: You must leave the shipping brackets 2
attached to the slide rails unless the shipping
brackets impede the server from sliding fully in the
rack cabinet. If you need to remove the shipping
brackets, continue with the next step.
Press on the release tab 1 as indicated on the
shipping bracket, and remove the shipping bracket
from the slide rail. Repeat this step for the other
shipping bracket. Store the shipping brackets for
future use.
Note: You must reinstall the shipping brackets on
the slide rails before you transport the rack cabinet
with the server installed. To reinstall the shipping
brackets, reverse this step.
3
