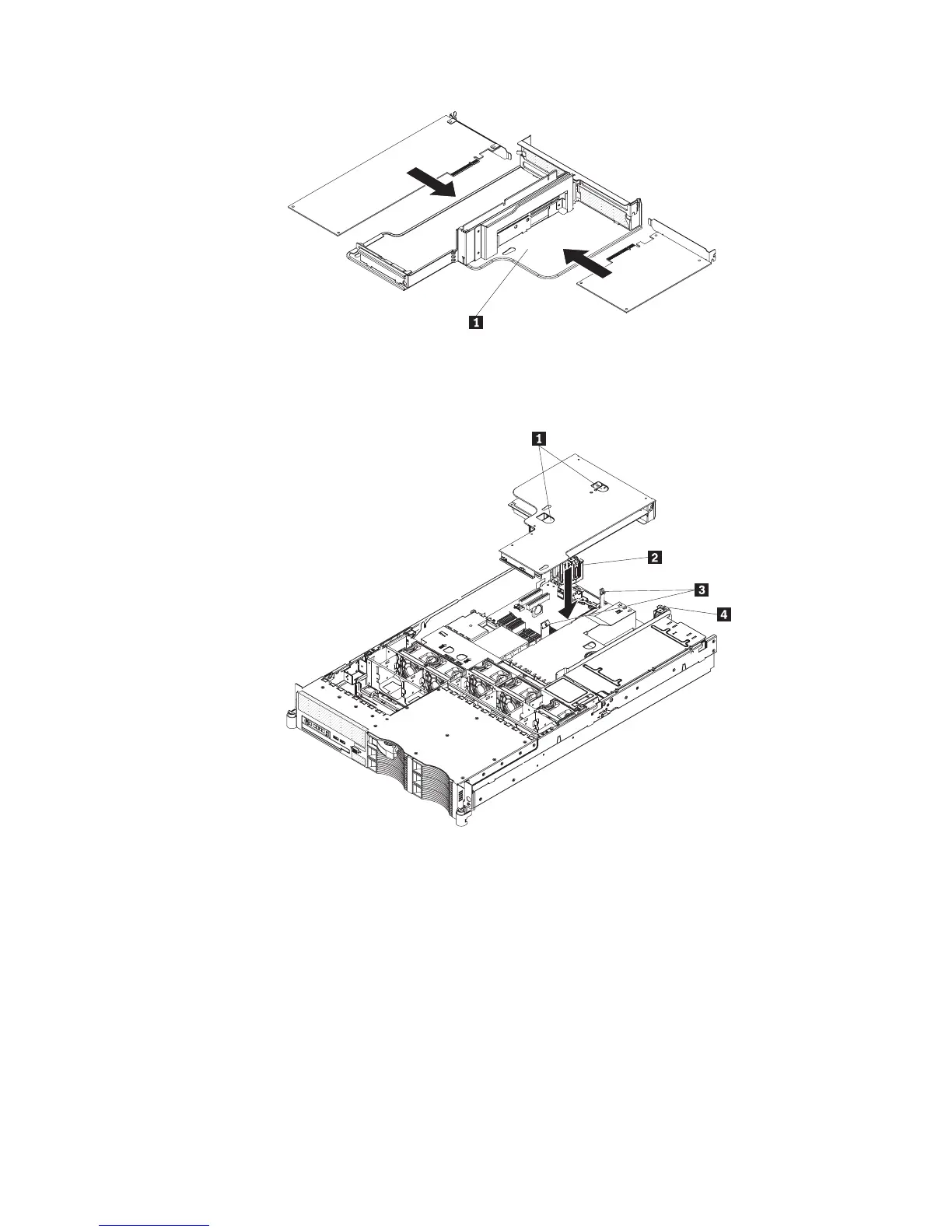

8. If you removed the PCI riser-card assembly to install the adapter, align the
riser-card assembly with the release-tab posts, rear guides, and connector;
then, press the PCI riser-card assembly firmly into the connector (see
“Installing the riser-card assembly” on page 34).
1 Access holes
2 Guide
3 Release tabs
4 Guide
9. Connect any required cables to the adapter.
Attention:
v When you route cables, do not block any connectors or the ventilated space
around any of the fans.
v Make sure that cables are not routed on top of components under the PCI
riser-card assembly.
v Make sure that cables are not pinched by the server components.
10.
Perform any configuration tasks that are required for the adapter.
42 ThinkServer RD120 Types 6444, 6445, 6446, and 6447: User Guide
