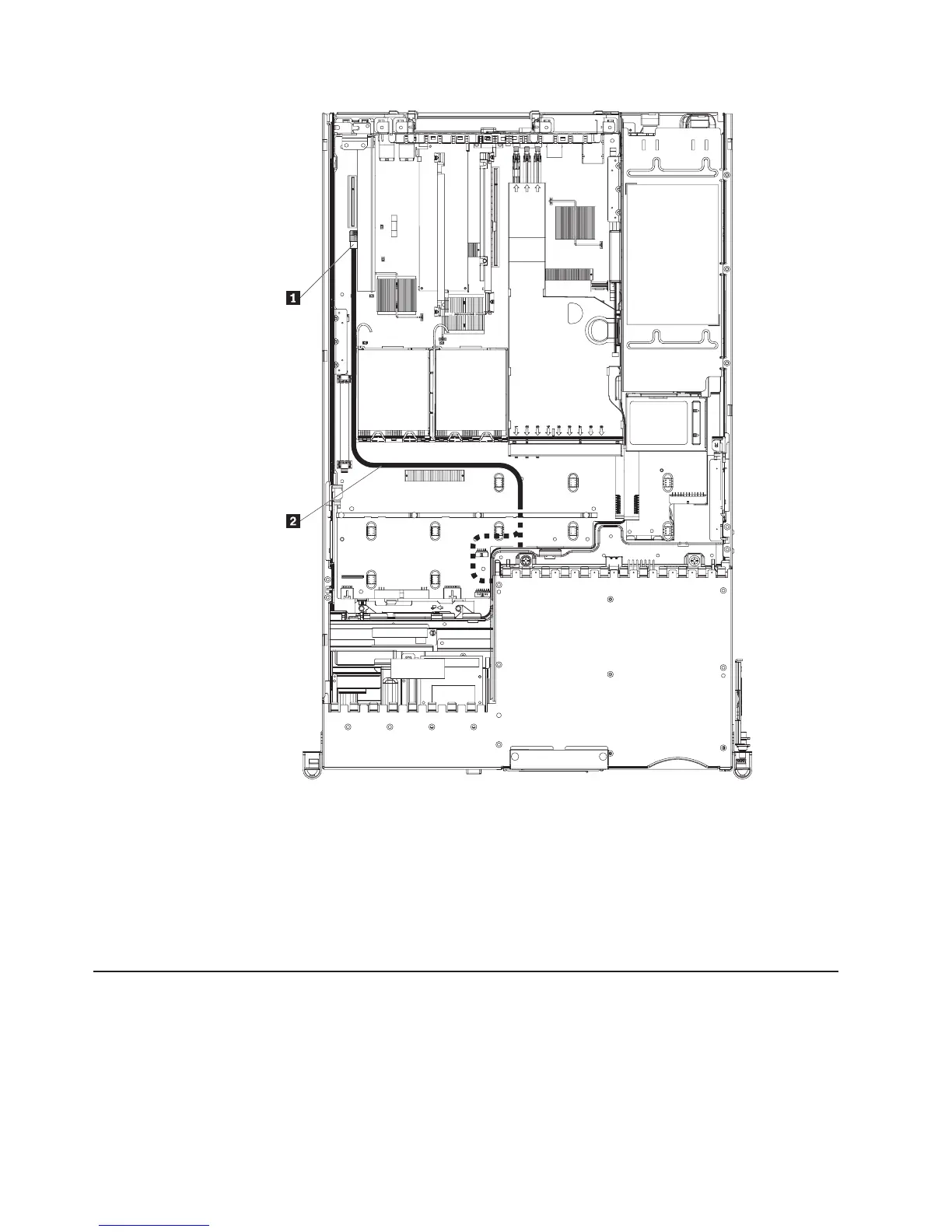

1 SATA tape cable connector
2 SATA tape cable
12. Install the fan-bracket assembly (see “Installing the fan-bracket assembly” on
page 72).
If
you have other optional devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 74.
Installing a microprocessor
The following notes describe the type of microprocessor that the server supports
and other information that you must consider when installing a microprocessor:
v The server supports certain Intel Xeon dual-core or quad-core flip-chip land grid
array 771 (FC-LGA 771) microprocessors, which are designed for the LGA771
socket. See http://www.lenovo.com/thinkserver for a list of supported
microprocessors.
54 ThinkServer RD120 Types 6444, 6445, 6446, and 6447: User Guide
