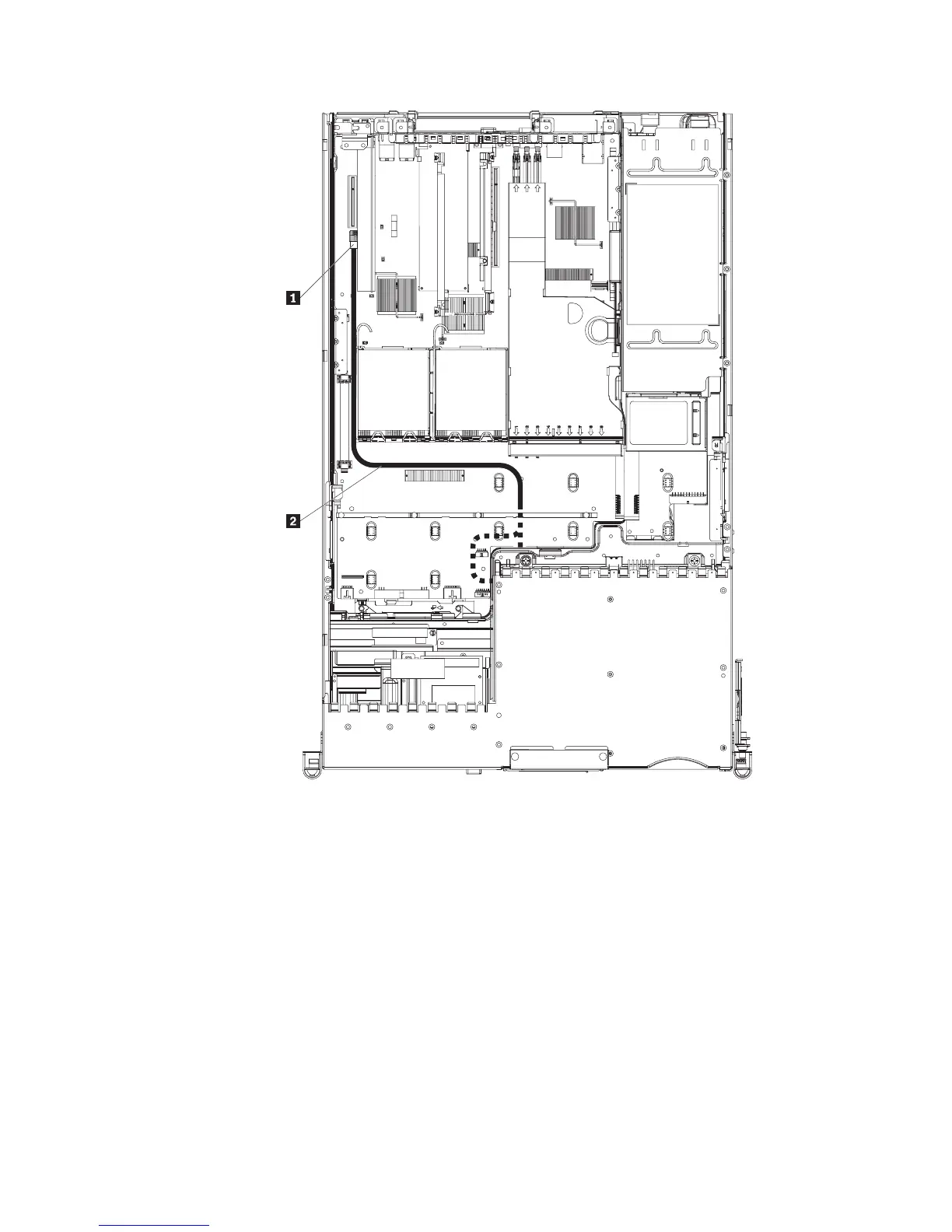

1 SATA tape cable connector
2 SATA tape cable
12. Install the fan-bracket assembly (see “Installing the fan-bracket assembly” on
page 72).
If
you have other optional devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 74.
52 ThinkServer RD120 Types 6444, 6445, 6446, and 6447: User Guide
