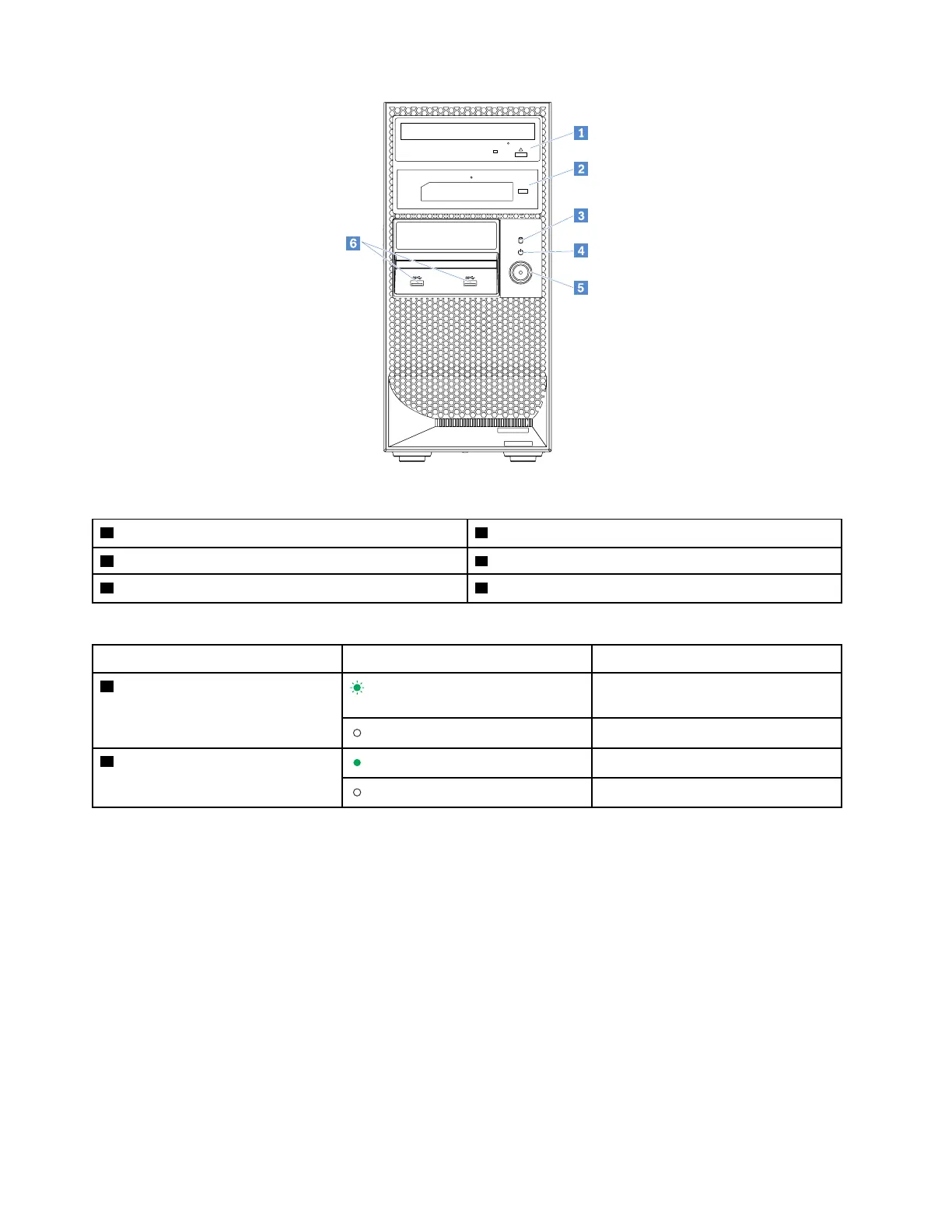

Figure 2. Front view of the server
1 Optical drive (available on some models) 2 RDX tape drive (available on some models)
3 HDD status LED 4 Power status LED
5 Power button
6 USB 3.0 connectors (2)
Table 2. LED status
LED
Status
Description
3 HDD status LED
Blinking green
Storage drives are active and data is
being transferred.
Off
Storage drives are not in use.
4 Power status LED
Green
The system is powered on.
Off
The system is powered off.
Note: The HDD status LED is functional only when the storage drives are connected to the SATA connectors
on the system board.
Rear view of the server
This topic provides information to help you locate the connectors and components on the rear of your server.
Some connectors on the rear of your server are color-coded to help you determine where to connect cables
to your server.
12
ThinkServer TS150 User Guide and Hardware Maintenance Manual
