Used to connect a microphone to your server when you want to record sound or if you use speech-
recognition software.
7 Audio line-out connector
Used to send audio signals from the server to external devices, such as stereo speakers, headphones,
multimedia keyboards, and so on.
8 Audio line-in connector
Used to receive audio signals from an external audio device, such as a stereo system.
9 PCIe slots
Used to install expansion cards, such as a graphics card, a RAID adapter, or an Ethernet card. For more
information, see “System board components” on page 19.
10 Padlock loop
Used to attach a padlock.

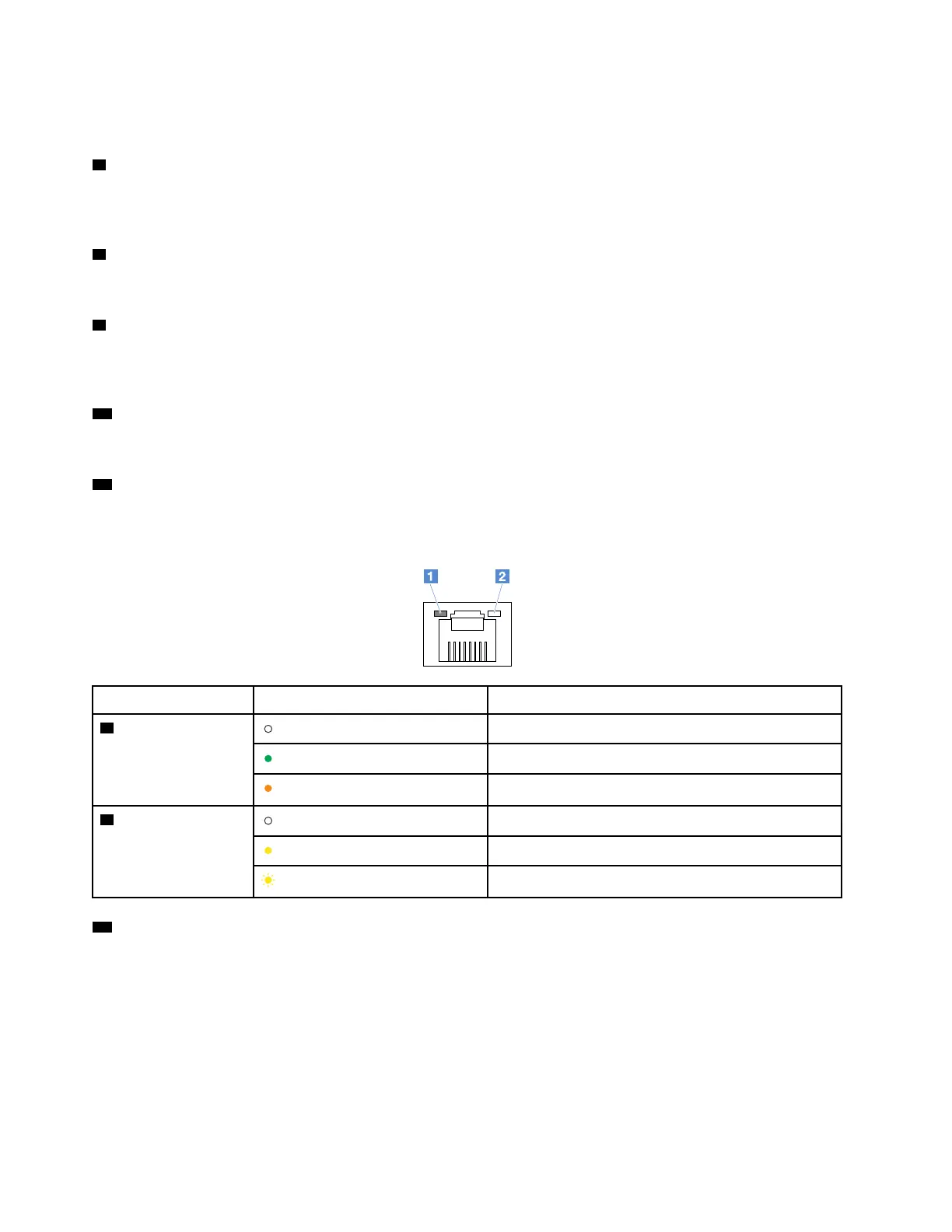

11 Ethernet connector
Used to connect an Ethernet cable for a local area network (LAN). The Ethernet connector has two status
LEDs to help you identify the Ethernet connectivity, activity, and connection speed.
Ethernet status LED
Status
Description
1 Connection speed
Off
The connection speed is 10 Mbps.
Green
The connection speed is 100 Mbps.
Orange
The connection speed is 1000 Mbps.
2 Link and activity
Off
The server is disconnected from a LAN.
Yellow
The server is connected to a LAN.
Blinking yellow
The LAN is connected and active.
12 Security-lock slot
Used to attach a cable lock.
Server locks
Locking the server cover prevents unauthorized access to the inside of your server.
Note: Depending on the model, your server might look slightly different from the illustrations in this topic.
14
ThinkServer TS150 User Guide and Hardware Maintenance Manual
