Slot Physical slot size Negotiable link
bandwidth
Supported card length
and height
21 PCIe slot 4
x1 x1 Half-length, full height
22 PCIe slot 3
x16 x4, x1 Half-length, full height
23 PCIe slot 2
x1 x1 Half-length, full height
24 PCIe slot 1
x16 x16, x8, x4, x1 Half-length, full height
25 Rear system fan connector
Used to connect the rear system fan.
26 Intrusion switch connector
Used to connect the intrusion switch.
27 Coin-cell battery
Your server has a special type of memory that maintains the date, time, and configuration information for
built-in features. The coin-cell battery keeps the information active when you turn off the server.
System board jumper
The Clear CMOS jumper is used to restore BIOS settings to factory default settings, recover BIOS settings
from a BIOS update failure, or clear a forgotten password.

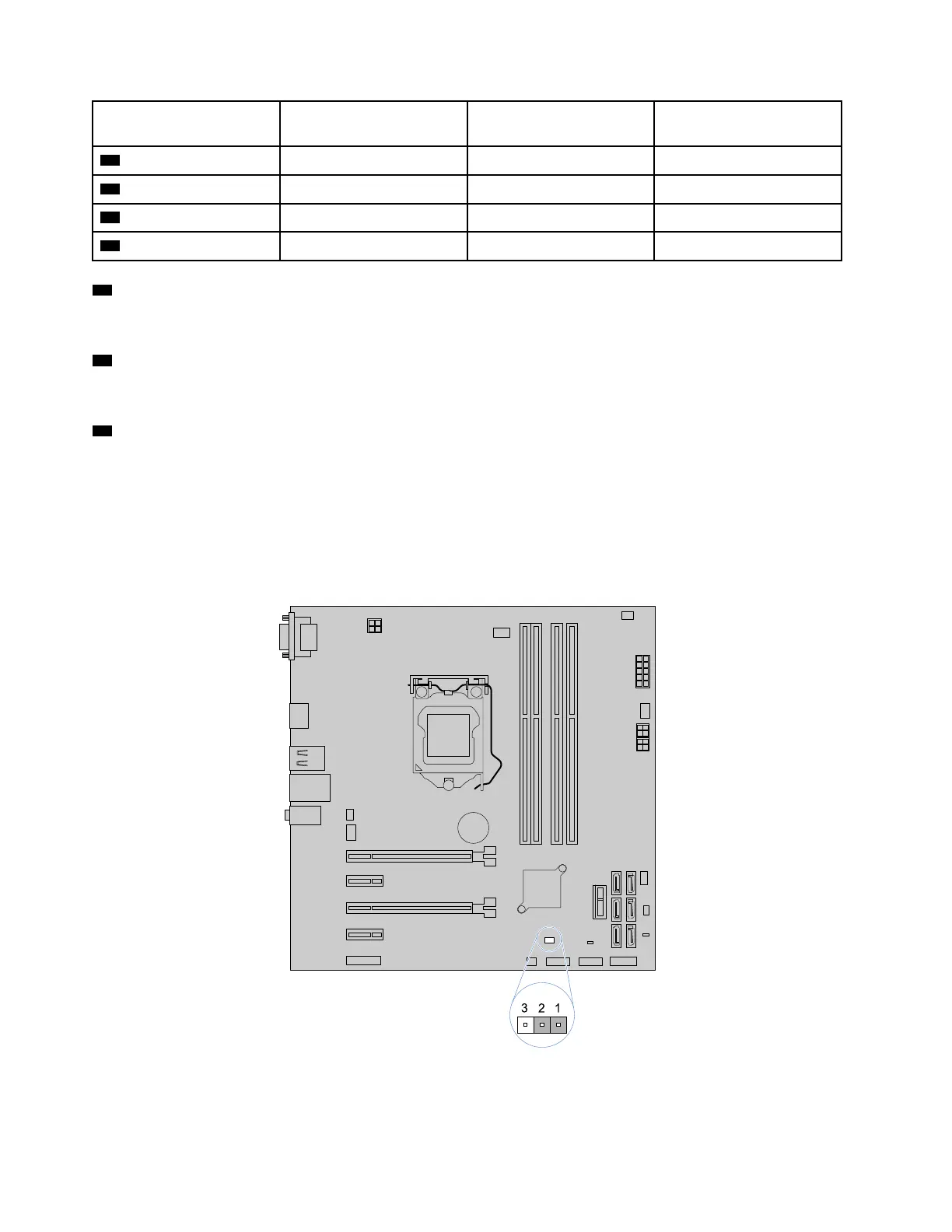

Figure 10. Clear CMOS jumper
22 ThinkServer TS150 User Guide and Hardware Maintenance Manual
