To install a storage drive into drive bay 2, do the following:
1. Prepare your server. See “Preparing your server and removing the server cover” on page 41.
2. Flex the drive bracket and align pins
1 , 2 , 3 , and 4 on the bracket with the corresponding holes in the
drive. Do not touch the circuit board
5 on the bottom of the drive.

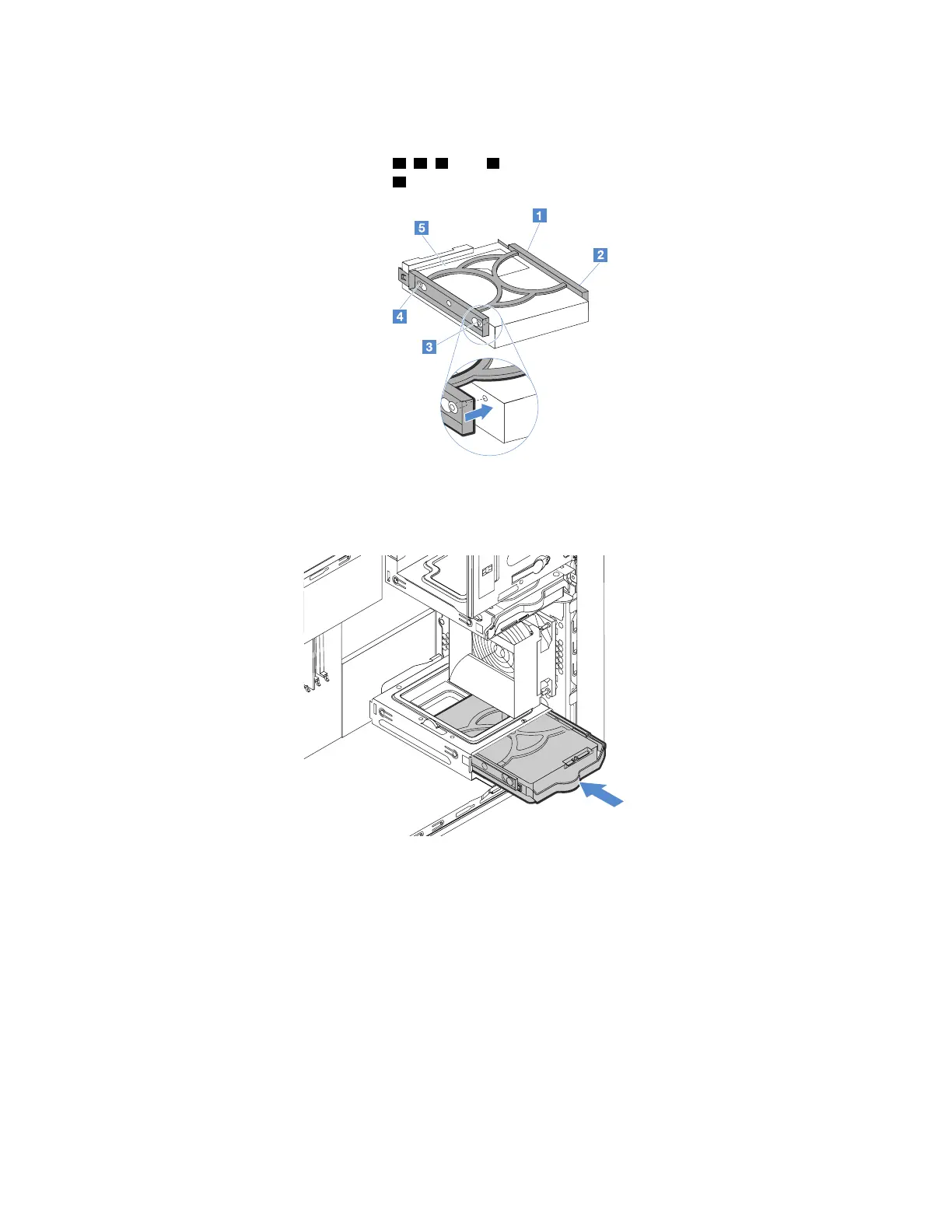

Figure 32. Installing the drive into the drive bracket
3. Slide the drive into the drive bay until it snaps into position.
Figure 33. Installing the drive into the drive bay
4. Connect cables to the drive.
Chapter 5. Replacing hardware 55
