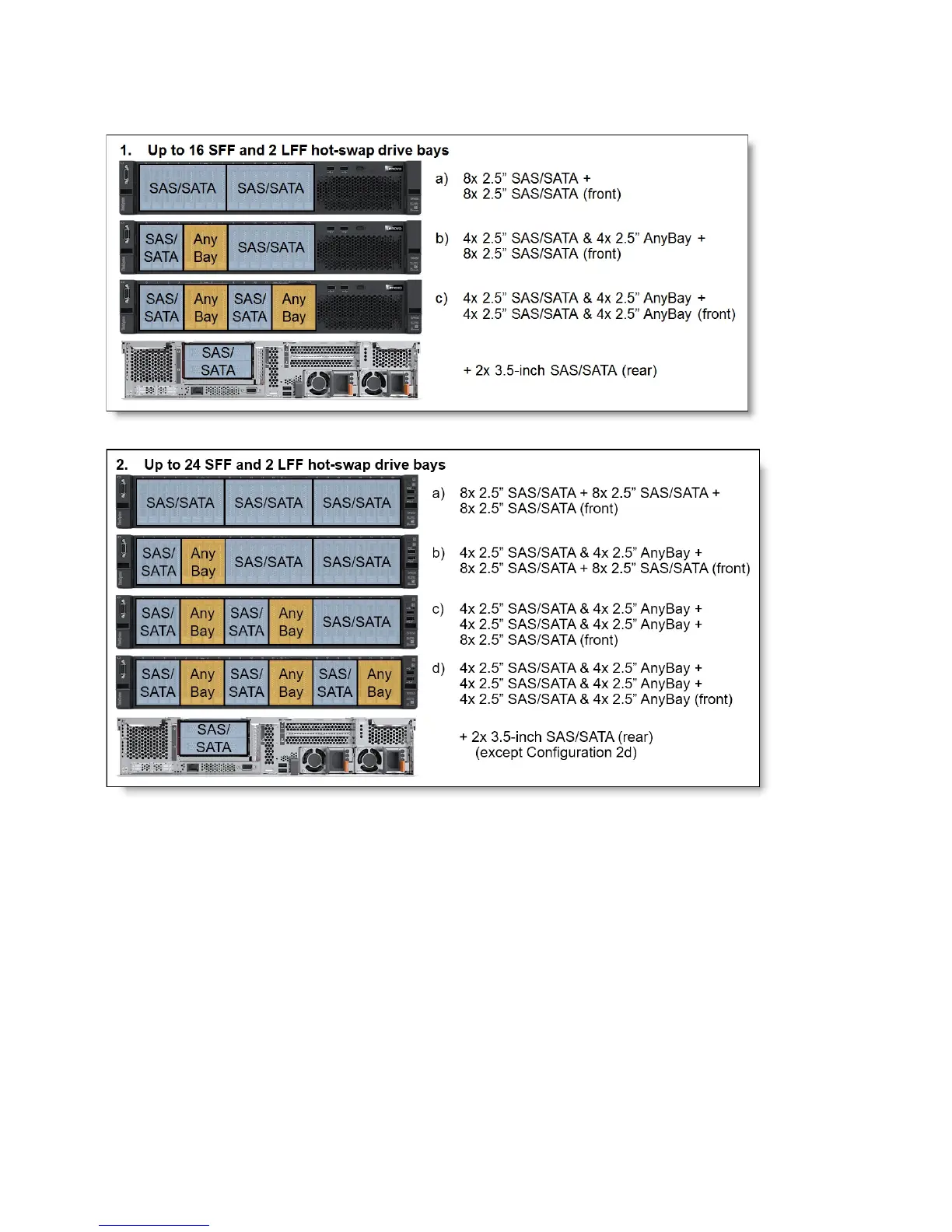

The following figures show the internal drive bay configurations.
Figure 8. Drive bay configurations: 16x 2.5" chassis
Figure 9. Drive bay configurations: 24x 2.5" chassis
Lenovo ThinkSystem SR650 Server 28
