Lenovo V130-15IKB Hardware Maintenance Manual

45
Lenovo V330-15ISK/Lenovo V330-15IKB/ Lenovo V130-15IGM/Lenovo V130-15IKB
1070 DIMM
Foraccess,removetheseFRUsinorder:
• “1010Removablemodule(onselectmodels)”onpage33
• “1020Basecover”onpage35
• “1030Batterypack”onpage38

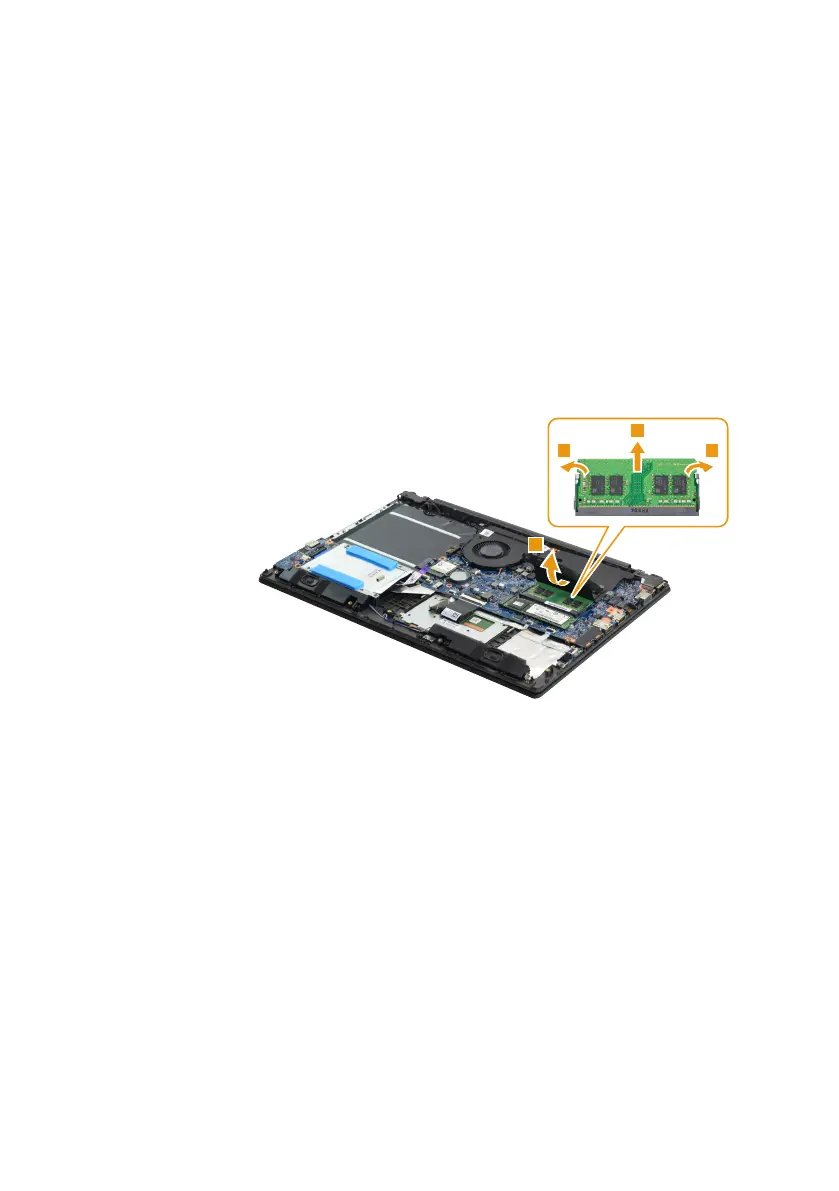

Figure 7. Removal steps of DIMM
Peeloffthetape
1
.Releasethetwolatchesonbothedgesofthesocketatthe
sametimeinthedirectionsshownbyarrows
2
,andthenunplugtheDIMMin
thedirectionshownbyarrow
3
.
1
2 2
3
When installing:
InsertthenotchedendoftheDIMMintothesocket.Pushthe
DIMMrmly,andpivotituntilitsnapsintoplace.Makesurethatitisrmlyxed
intheslotandisdifculttomove.
Note:
Whenreplacingthememoryiscompleted,youneed torestartthe
computeraftertherstreboot.

Lenovo V130-15IKB Specifications

General

Processor	Intel Core i3/i5/i7 (7th Gen)
Display	15.6" HD (1366 x 768) or FHD (1920 x 1080)
RAM	Up to 12GB DDR4
Storage	Up to 1TB HDD or 256GB SSD
Graphics	Integrated Intel HD Graphics 620
Operating System	Windows 10 Home
Battery	30Wh, up to 6 hours
Weight	1.8 kg (3.96 lbs)
Audio	Dolby Audio
Connectivity	WiFi 802.11ac, Bluetooth 4.1
Ports	2 x USB 3.0, HDMI, Headphone/microphone combo jack
