Lenovo V130-15IKB Hardware Maintenance Manual

48
Lenovo V330-15ISK/Lenovo V330-15IKB/Lenovo V130-15IGM/
Lenovo V130-15IKB Hardware Maintenance Manual
1100 IO board
Foraccess,removetheseFRUsinorder:
• “1010Removablemodule(onselectmodels)”onpage33
• “1020Basecover”onpage35
• “1030Batterypack”onpage38
• “1090Speaker”onpage47

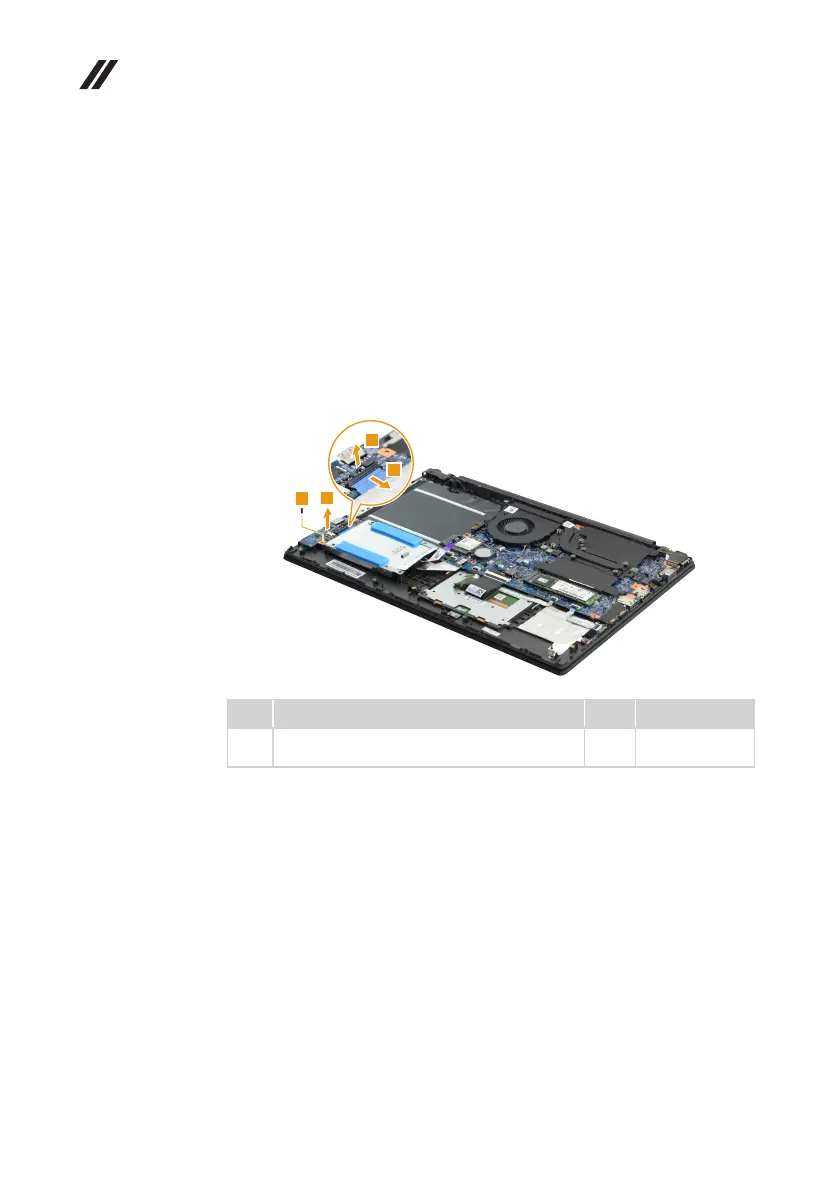

Figure 10. Removal steps of IO board
DetachtheIOboard connectorin thedirections shownbyarrows
1
and
2
.
Removethescrew
3
.RemovetheIOboard
4
.
1
4
2
3
Step Screw (quantity) Color Torque
3
M2×5.0mm,Phillipshead,nylok-coated(1)
IOboard
→
Ccover
Black 1.85±0.15kgf*cm
When installing:
Makesurethattheconnectorsareattachedrmly.

Lenovo V130-15IKB Specifications

General

Processor	Intel Core i3/i5/i7 (7th Gen)
Display	15.6" HD (1366 x 768) or FHD (1920 x 1080)
RAM	Up to 12GB DDR4
Storage	Up to 1TB HDD or 256GB SSD
Graphics	Integrated Intel HD Graphics 620
Operating System	Windows 10 Home
Battery	30Wh, up to 6 hours
Weight	1.8 kg (3.96 lbs)
Audio	Dolby Audio
Connectivity	WiFi 802.11ac, Bluetooth 4.1
Ports	2 x USB 3.0, HDMI, Headphone/microphone combo jack
