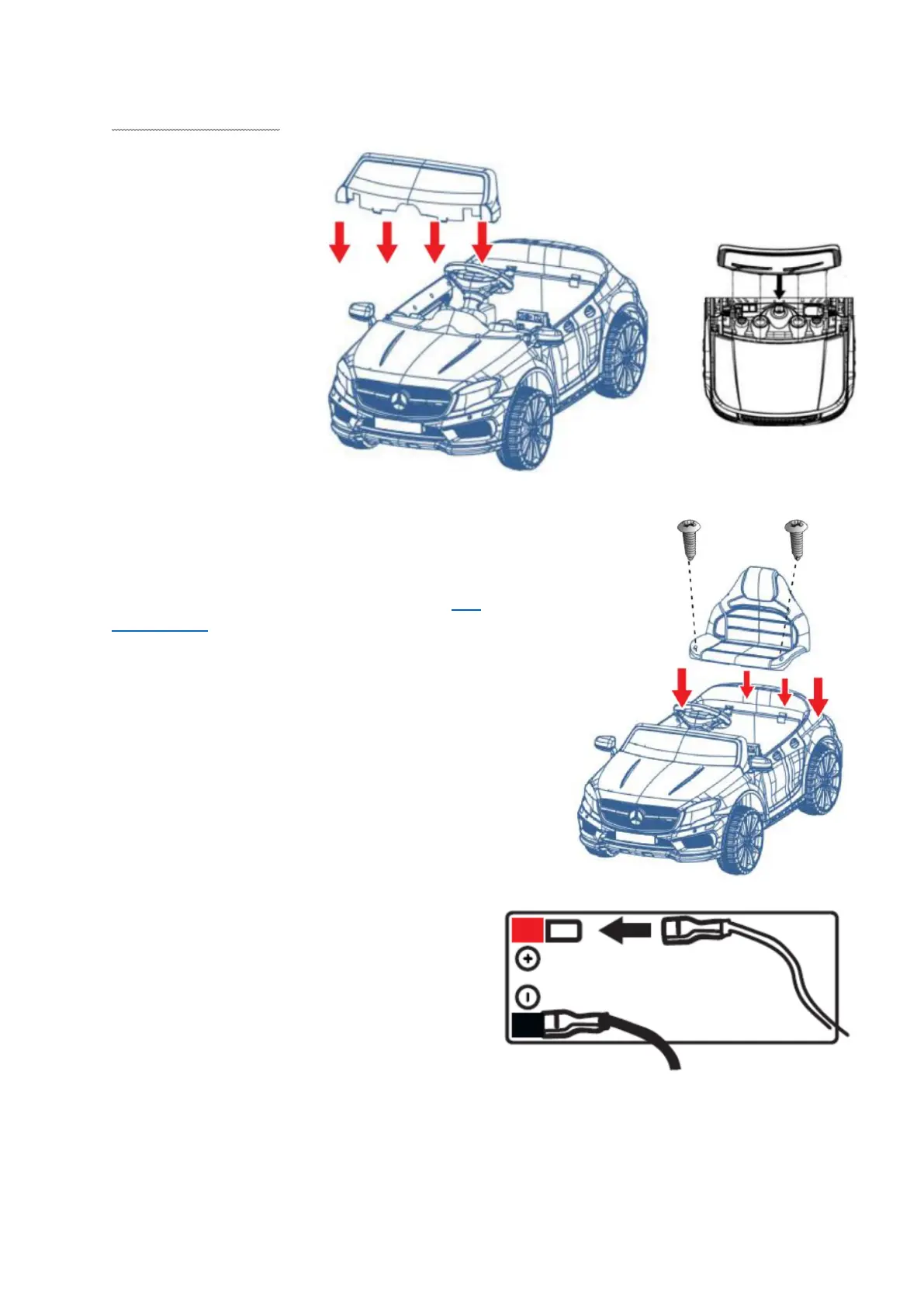

Windshield installation:
●Look at the slots and
press the windshield
into the slots
accordingly.
Seat installation:
● Put the seat onto the ride‐on body according to the above
picture, ensuring the seat marrys up wo the slots on the
ride‐on’s body. Attach the seat with using Ø4*20 self‐
tapping screws.
Reminder:
Ensure the battery is connected before screwing
the seat into position.
● The battery will need to be connected as a step
in the assembly process, before charging and
before use of the ride-on.
● Remove the black plastic protective cover.
● Connect the red wire from the ride-on body
onto the red terminal of the battery. Also ensure
the black wire is connected onto the black terminal of the battery.
Note: Pay attention to the positive and negative positions on the battery to prevent a short circuit.
