23

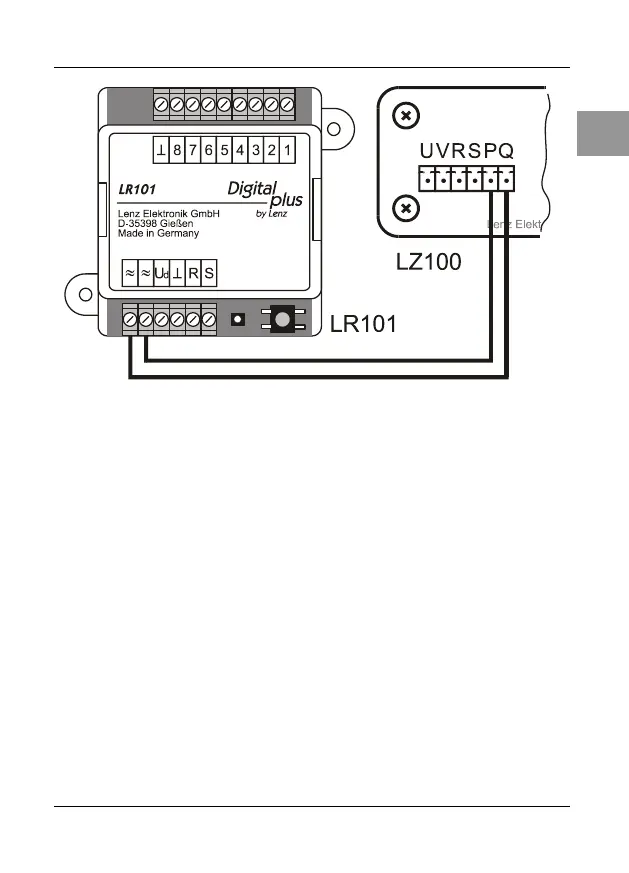

Figure 2
Change to the programming mode and select 'Programming a CV'.
Programming the address
Select CV1 as the CV to be altered, then program the desired address. Please
bear in mind the permissible value range of 1 to 128.
Programming the delay times
The procedure is the same as described under 'Programming the address'. For
the address choose CV11 to CV18 (instead of CV1), depending on which input
you would like to alter. Now, program the value for the desired delay time into the
selected CV.
