Lenze 531*E 3A series - Page 14

12
L
Armature choke
a
f
c
m
k
e
d
b
n

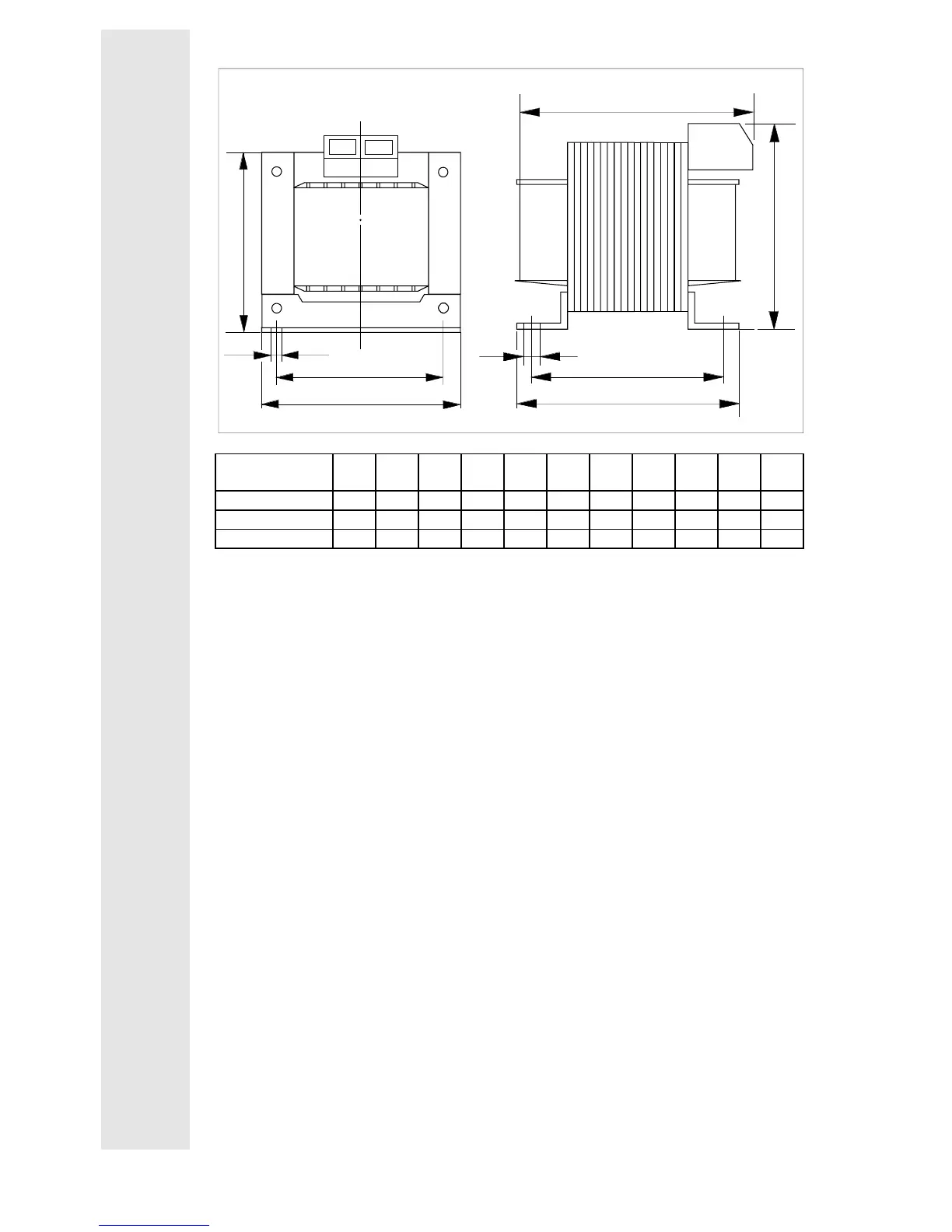

Armature choke L
[mH]
I
[A]
a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
k
[mm]
m
[mm]
n
[mm]
ELK_440H004 40 4,4 104 82 84 66 100 92 100 5.8 11
ELK_500H002 50/15 2/10 120 100 90 84 107 103 115 5.8 11
ELA_400H010 40/12 10/18 150 122 121 101 130 132 140 7.0 13
The suitable type of armature choke depends on the motor type.
