5 Setting
Turn trimmers "I x R", "n
max
", "n
min
", "T
i
" and set-value potentiometer fully
counterclockwise. Trimmer "I
max
" is factory set to rated controller current.
The current range selector for type 534 is factory set to 8 A.
5.1 Selection of the current range for type 534
The current range of type 534 can be set to 12 A by switching off the controller
and moving selector S1 from position 8 A to position 12 A.

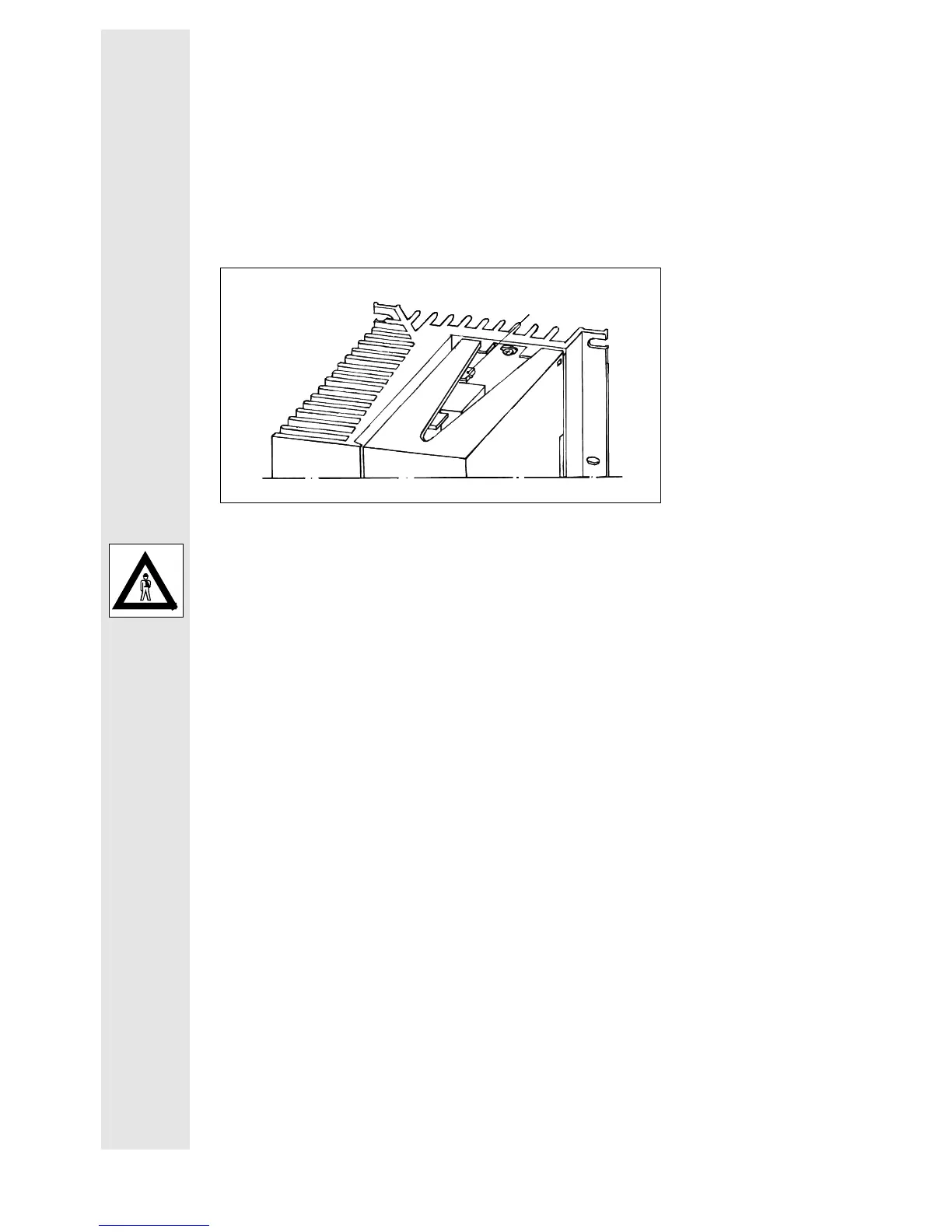

Selector S1
12 A
8 A
Caution!
The current range must only be set by qualified skilled personnel when no
voltage is applied.
