ELx7xx−013

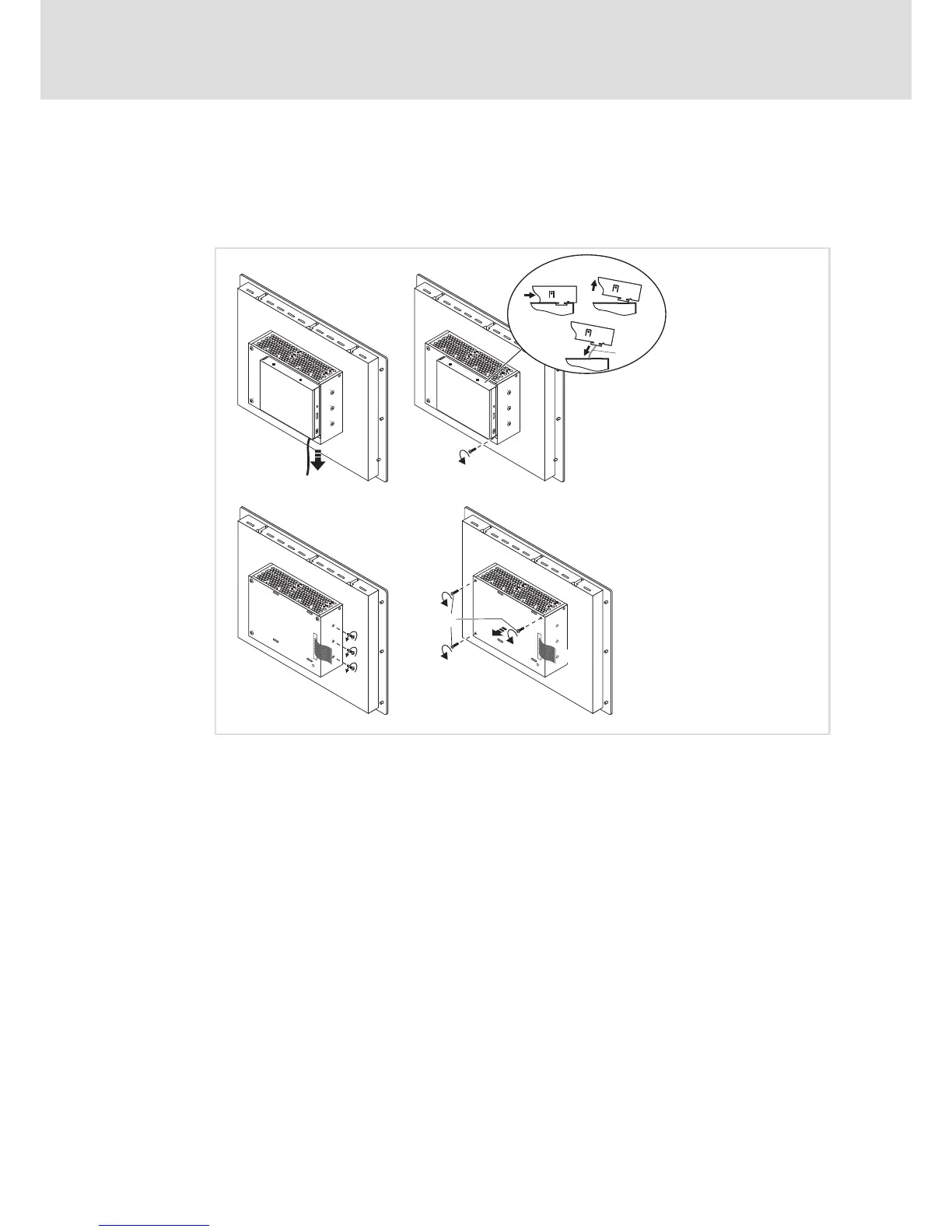

Proceed as follows when a DVD drive is mounted:
1. Remove the 24 V cable ( 38)
2. Remove the DVD drive :
– Loosen the fixing screw .
– Push the DVD drive to the right.
– Carefully take off the DVD drive.
– Remove the ribbon cable .
3. Only for fanless devices: Loosen the three screws .
4. Remove the housing :
– Loosen the three screws .
– Carefully pull the housing off towards the front while passing the ribbon cable
through the housing aperture.
