Lenze ESV751N02YXB571

16
EDBSV571 EN 1.0
EN
Installation

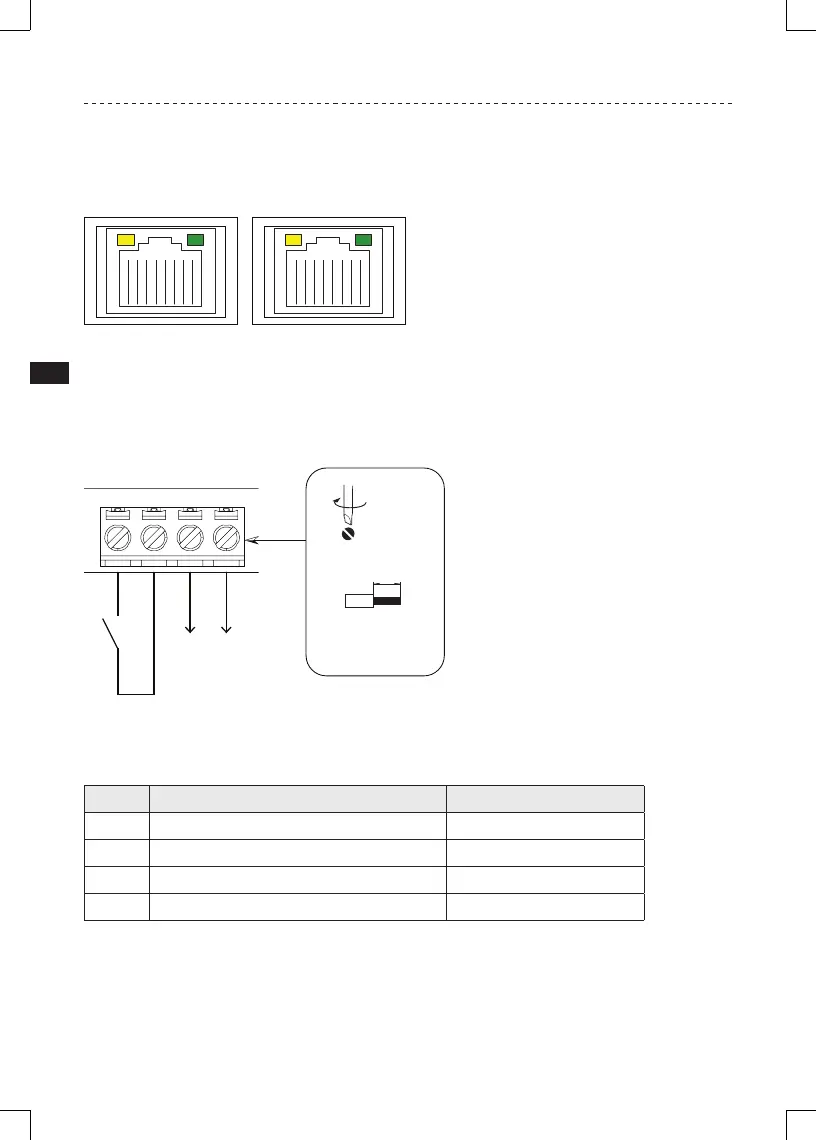

3.2.3 Control Terminals
Serial Communication Ports:
Dual port RJ-45
For Modbus RS-485
Daisy Chaining
Control Terminals:
30211
1
Enable Analog C
ommon
Analog Output
4.5 lb-in
(0.5 Nm)
AWG 26 ... 16
(<1mm
2
)
0.25 in (6 mm)
Control Terminal Strip Descriptions
Terminal Description Important
1 Digital Input: Start/Stop input resistance = 2.6kΩ
11 Internal DC supply for external devices +12 VDC, max. 50 mA
2 Analog Common
30 Analog Output: Configurable with P150…P155 0…10 VDC, max. 20 mA
