I/O data transfer (implicit messages)
I/O configuration in the »Engineer«
54
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

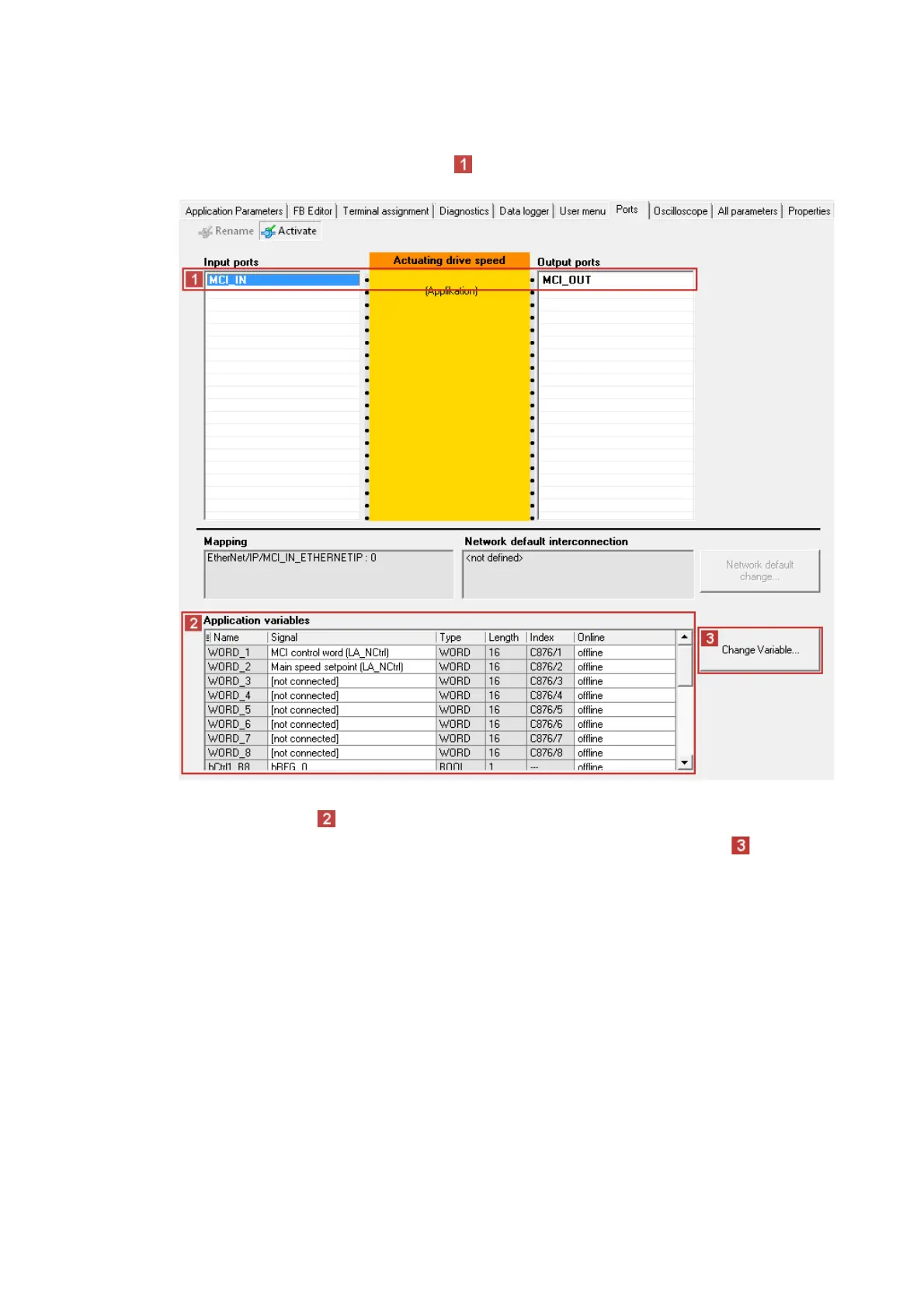

3. On the Ports tab, the port blocks
MCI_IN and MCI_OUT for the I/O data objects are
shown.
• By clicking the required port, the preconfigured signal combination can be obtained
from the
Application variables.
• If you want to complement or change the signal combination, click the
Change
Variable… button.
