I/O data transfer (implicit messages)
I/O configuration with »RSLogix 5000« version 20 or higher
64
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

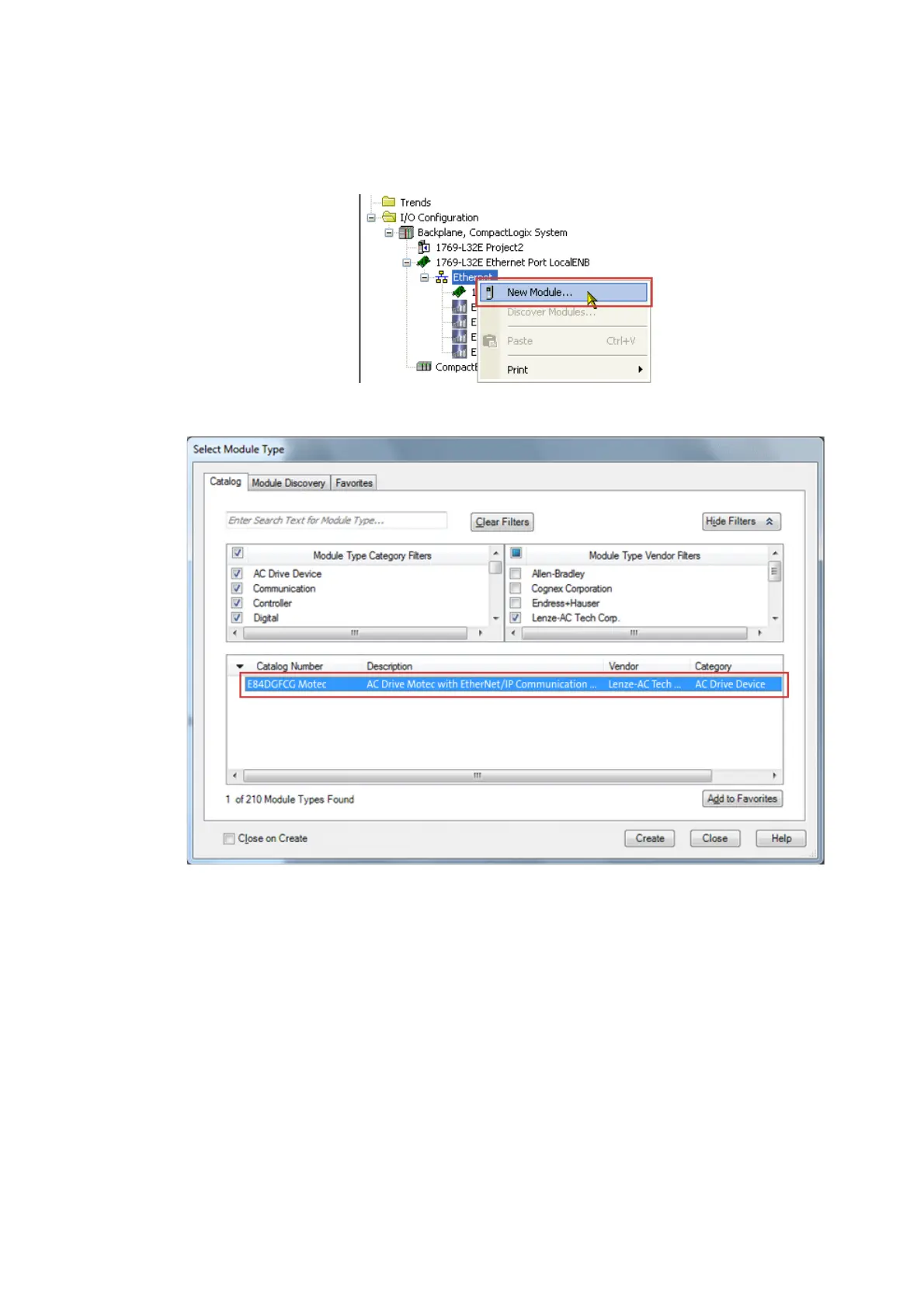

3. Right click on "Ethernet" and execute the "New Module ..." command from the context
menu.
4. Open the "Select Module Type" dialog window, go to the Catalog tab and select "E84DGFCG
Motec".
5. Confirm the selection with Create.
