Lenze EVS9324-EK

Function block library
7-175

SHB9300CRV EN 2.0
Signal shape
before triggering
Trigger level
Trigger time
Memory content
Signal shape after triggering
measured signal

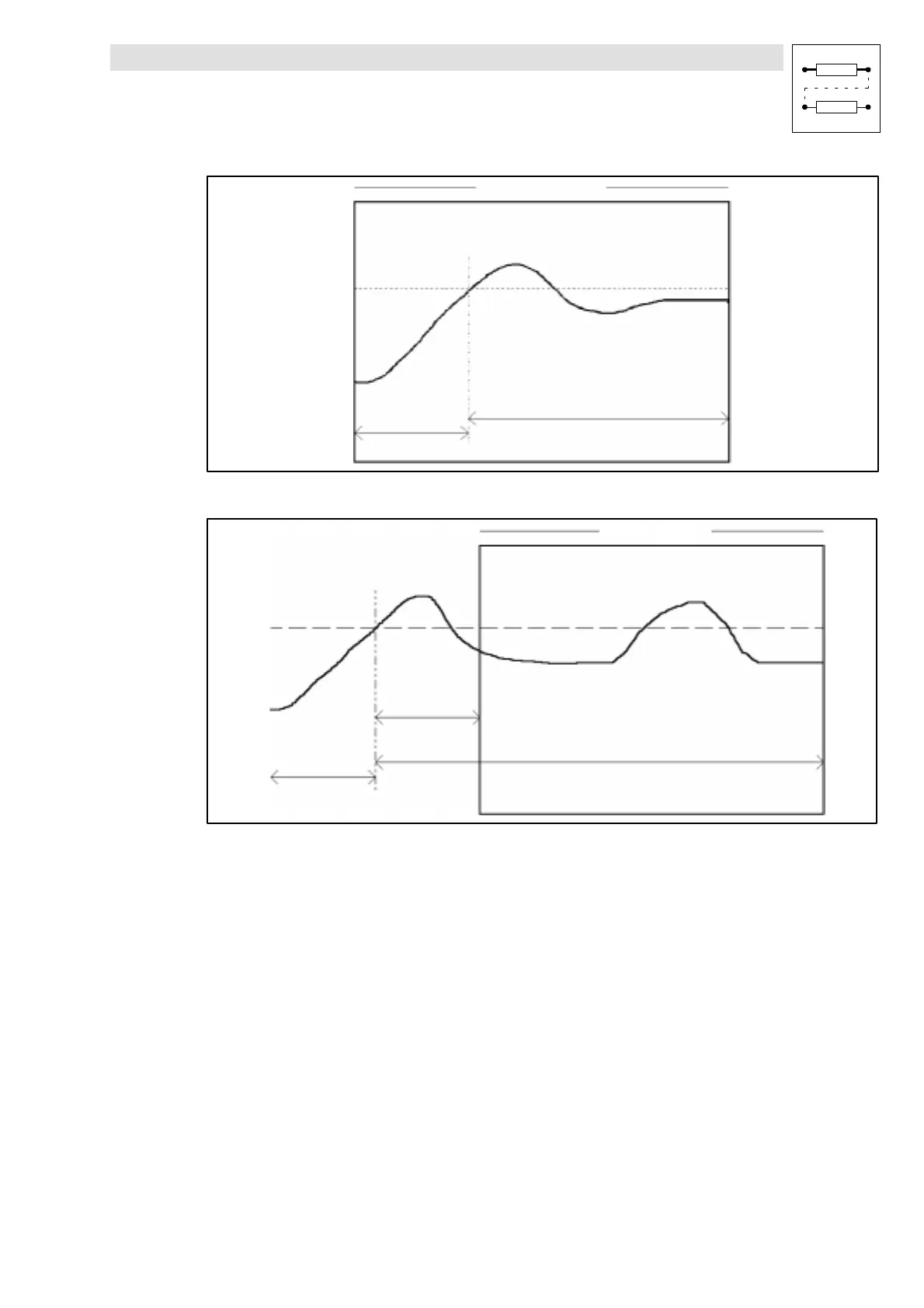

Fig. 7-135 Example: Trigger level and trigger delay with approx. -30 % post triggering
Signal shape
before triggering
Trigger delay
Trigger level
Trigger time
Memory content
Signal shape after triggering
measured signal
Fig. 7-136 Example: Trigger level and trigger delay with approx. -30% pre-triggering
