7.7.3.19 Phase controller overflow P13
Purpose
Process monitoring
MONIT
MONIT-P13
DFSET-PSET
const

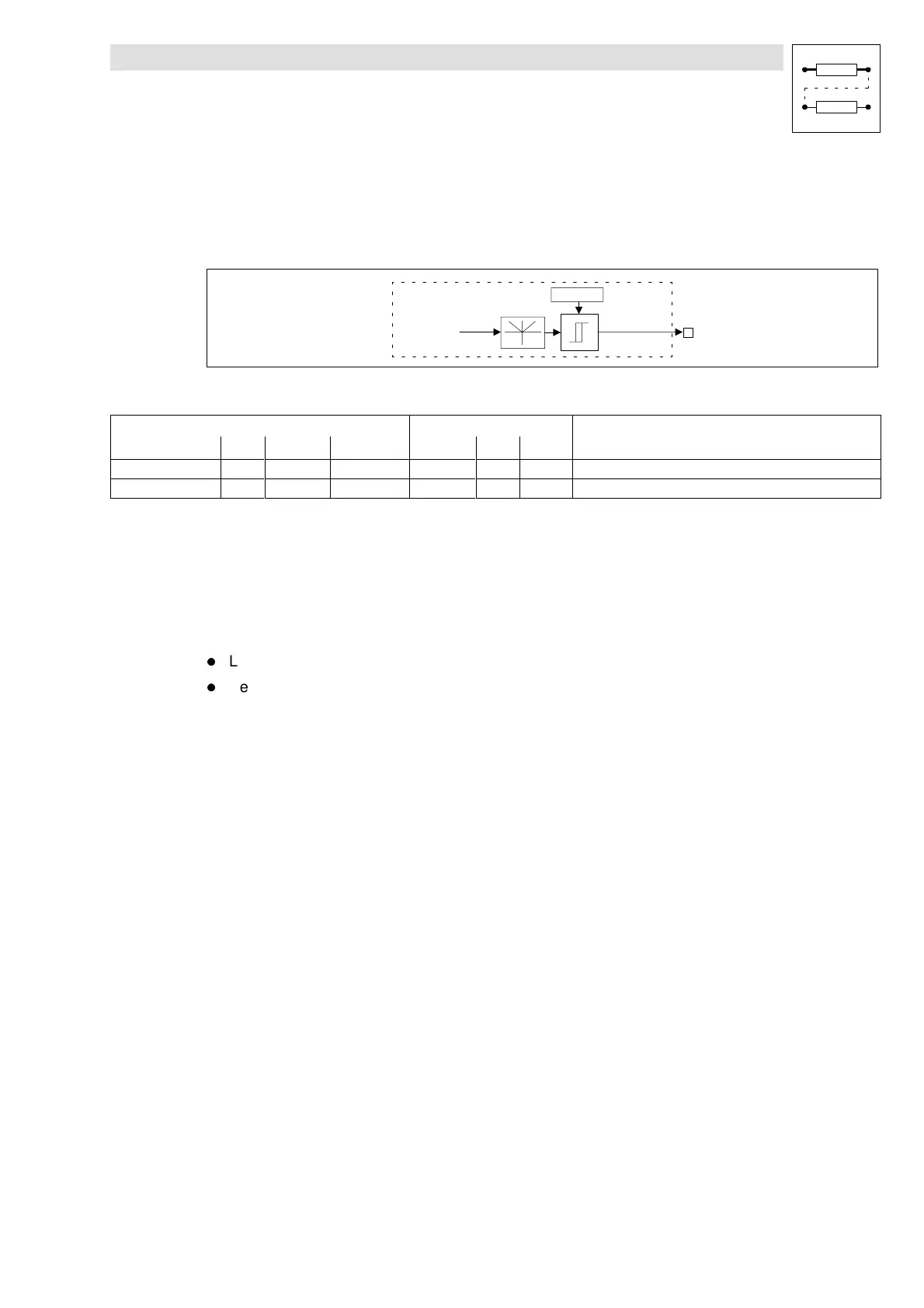

Fig. 7-208 Phase controller overflow P13
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
DFSET-PSET - - - - - - -
MONIT-P13 d - - - - - -
Function
If this monitoring reacts, the phase deviation which can be represented internally, is exceeded.
Homing points are lost.
When the monitoring is switched off, the homing points are also lost.
Features:
l
LECOM no.: 163
l
Reaction: TRIP or OFF
