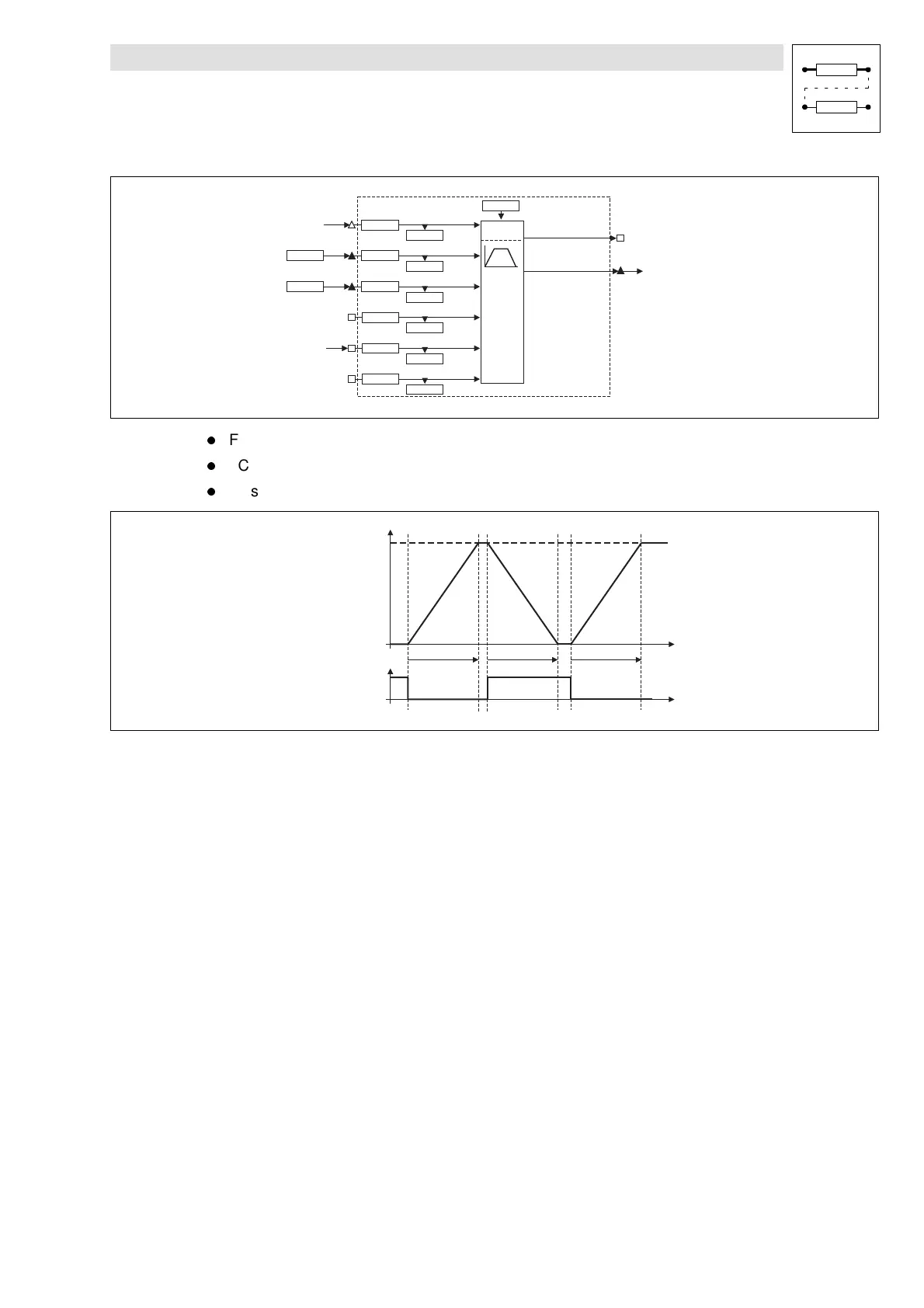

Function block library
7-203
SHB9300CRV EN 2.0
RFGPH1-OUT
RFGPH1
C 1408/1
RFGPH1-RFG-0
RFGPH1-IN
RFGPH1-RFG-I=O
CTRL
RFGPH1-DFIN
C 1402/1
C 1400/3
C 1401/3
C 1404/1
C 1403/1
C 1405/1
RFGPH1-DIST
C 1402/2
C 1403/2
RFGPH1-T/DIST
C 1400/2
C 1401/2
RFGPH1-RESET
C 1400/1
C 1401/1
CDATA-XOFFS
FIXED1
C 1476/1
FCO D E
C 1476/2
FCO D E
DFIN-OUT
l
FCODE C1476/2 = 10 m-units (=RFGPH1-DIST)
l
FCODE C1476/1 = 2.5 m-units (=RFGPH1-IN)
l
Master value at RFGPH1-DFIN (the absolute value is generated from the input value)
s
s
RFGPH1-RFG-0
RFGPH1-IN
RFGPH1-OUT
RFGPH1-DIST RFGPH1-DIST RFGPH1-DIST
Explanation:
The drive to be moved must compensate the distance of 2.5 m-units set at RFGPH1-IN while the
master drive traverses a distance of 10 m-units. Its speed is determined by the speed of the master
drive (RFGPH1-DFIN)and the path difference (RFGPH1-DIST).
Afterthemaster valuehas traversed the distance(RFGPH1-DIST), RFGPH1-OUT= RFGPH1-IN. The
positionchangeisthuscompleted.Masterdriveand electronic cam profilerrunsynchronouslyagain.
Status signals
RFGPH1-RFG-I=0 = HIGH indicates that the output RFGPH1-OUT has reached the end value
selected (the output is not adjusted any more).
