Function block library
7-123
 SHB9300CRV EN 2.0
7.6.35.3 General delay
A general delay causes any signal change at the input DIGDELx-IN to be passed to the output
DIGDELx-OUT only after the time set under C0721 or C0726 has elapsed.
t
t
DIGDEL1-IN
DIGDEL1-OUT
t
DIGDEL1-TIMER
C0721

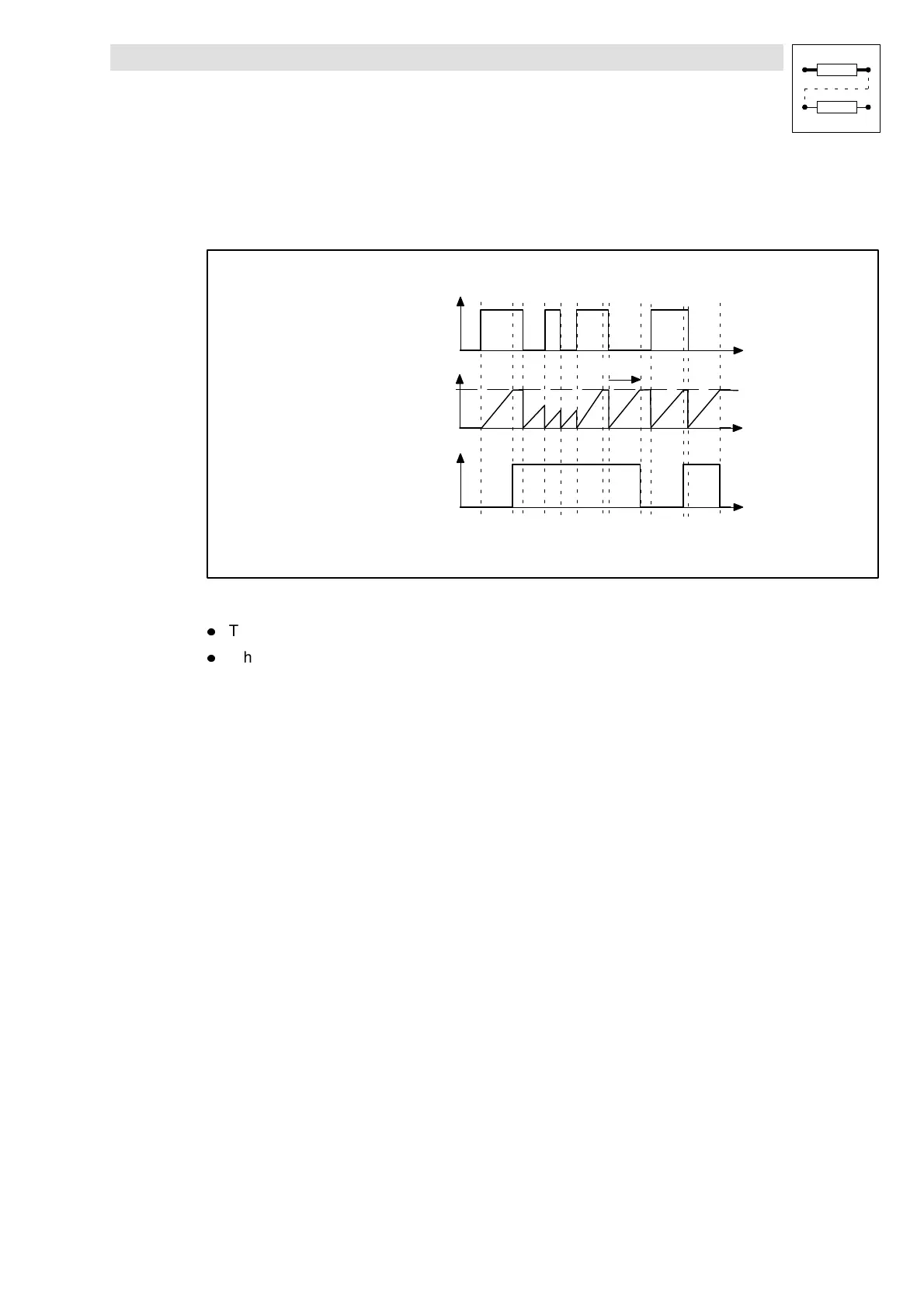

Fig. 7-91 General delay
l
The time element is started with any edge at the input DIGDELx-IN.
l
When the timer (can be set under C0721 or C0726) has reached the upper limit, the output
DIGDELx-OUT is set to the same value as the input DIGDEL1-IN.
