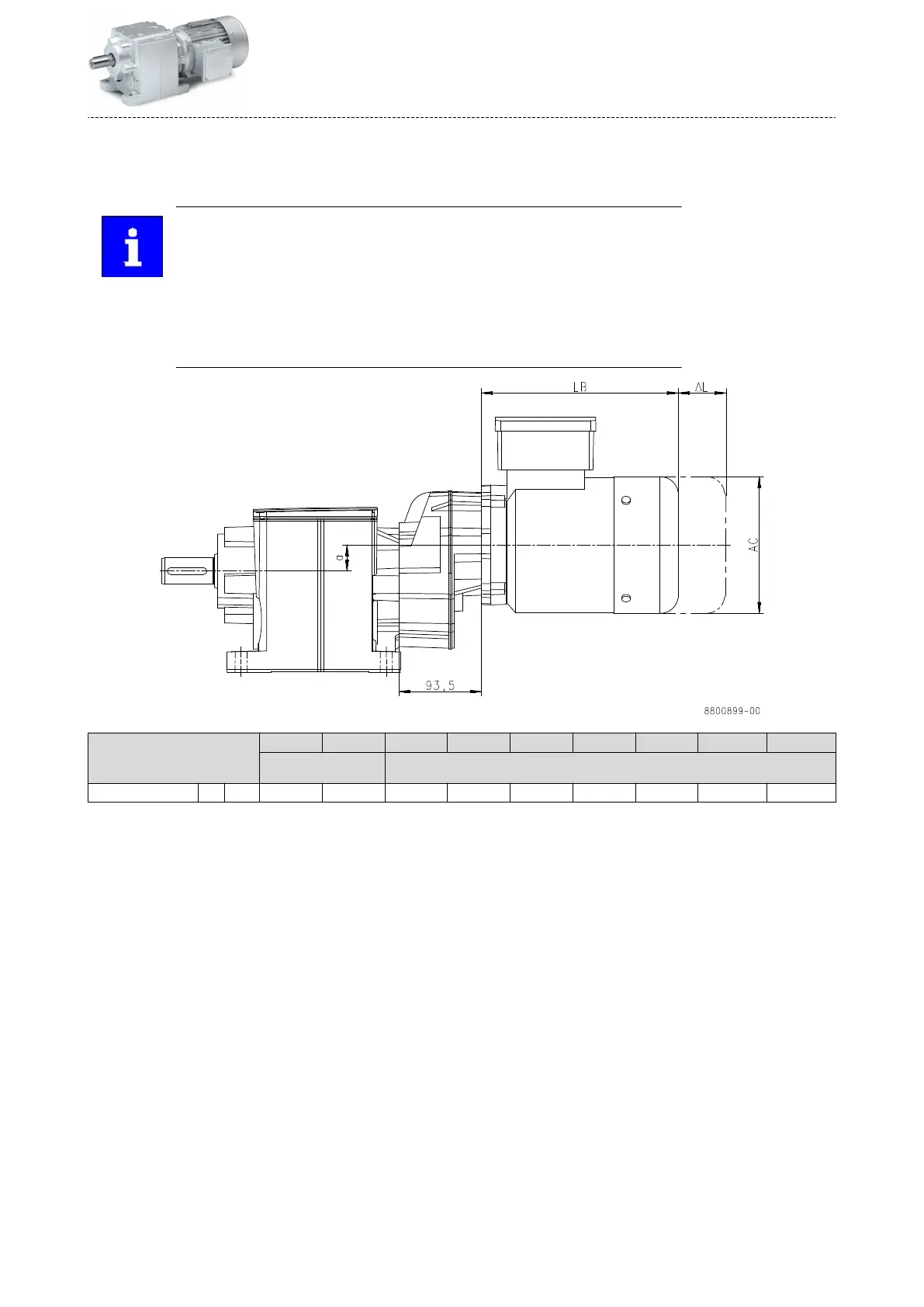

Lenze g500-H Series - Gearbox with Pre-Stage

Gearbox with pre-stage
g500-H100 ... H140, 3-stage
g500-H210 ... H3000, 4-stage
The geared motor dimensions are taken from the basic dimensions except for
the overall length "L" and the center distance "a".
4Basic dimensions ^ 82
The total length "L" of the basic dimensions is extended by the 93.5 mm
dimension of the pre-stage.
Note the changed center distance "a" between the gearbox sha and the motor
sha.
Gearboxes g500-H100 g500-H140 g500-H210 g500-H320 g500-H450 g500-H600 g500-H850 g500-H1500 g500-H3000
3-stage 4-stage
Center distance a mm 40.2 30 34.8 24.3 29.6 17.6 26.5 28.2 32.5
Technical data
Dimensions
Gearbox with pre-stage
117
