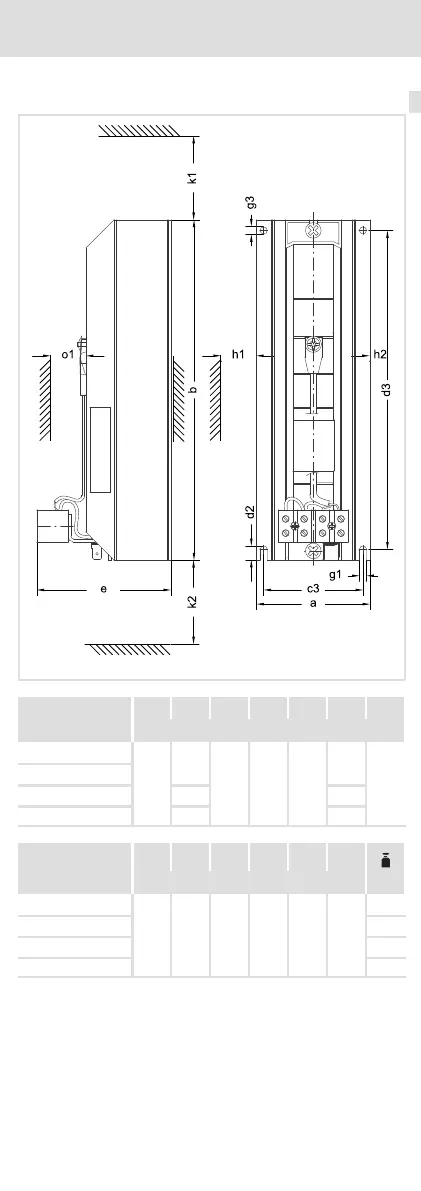

Technische Daten
Mechanische Daten
4
EDKRBM001 DE/EN/FR 6.1
17
l
H1_Daten−Abm_BF3_BL
Bauform 3
ERBMV004
a b e c3 d2 d3 g1
[mm]
ERBM082R150W
80
240
94.5 70 7.5
225
5
ERBM100R150W
ERBM200R100W 160 145
ERBM370R150W 240 225
g3 h1 h2 k1 k2 o1
[mm] [kg]
ERBM082R150W
5
25 25 100 100 25
0.95
ERBM100R150W 0.95
ERBM200R100W 0.60
ERBM370R150W 0.95
