4 Technische Daten
Mechanische Daten
EDKRBM001 DE/EN/FR 6.1
18
l
H1_Daten−Abm_BF3_BL

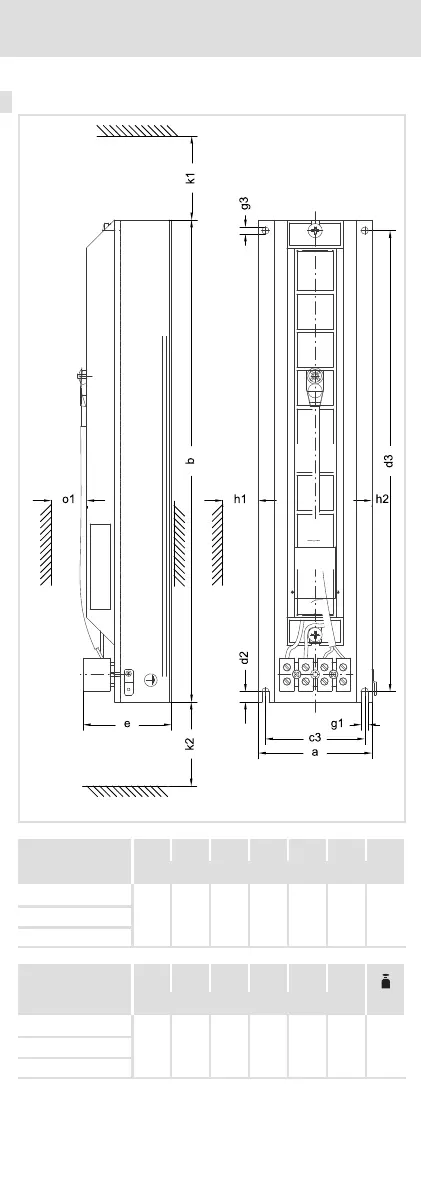

Bauform 4
ERBMV005
a b e c3 d2 d3 g1
[mm]
ERBM052R200W
80
340 66 70 7.5 325 5
ERBM082R200W
ERBM240R200W
g3 h1 h2 k1 k2 o1
[mm] [kg]
ERBM052R200W
5
25 25 100 100 25 1.25
ERBM082R200W
ERBM240R200W
