Lenze M Series Mounting Instructions

Mechanical installation
Plug connection
Lenze • MA 33.0003 • 6.0
16
H1_MechINS-verbindung-buchse-motorstecker
Plug connection
Theconnectorscomplywithvibrationandshockclass 3M6as specifiedin IEC/EN60721-3-3.
This applies to all power, encoder a nd fan connector boxes.
 Stop!
ƒ Cable connector s with scr ewed connection:
– Always use with the O-rings supplied.
ƒ Cable connectors with a SpeedTec bayonet lock:
– Remove O-ring and dispose of it.

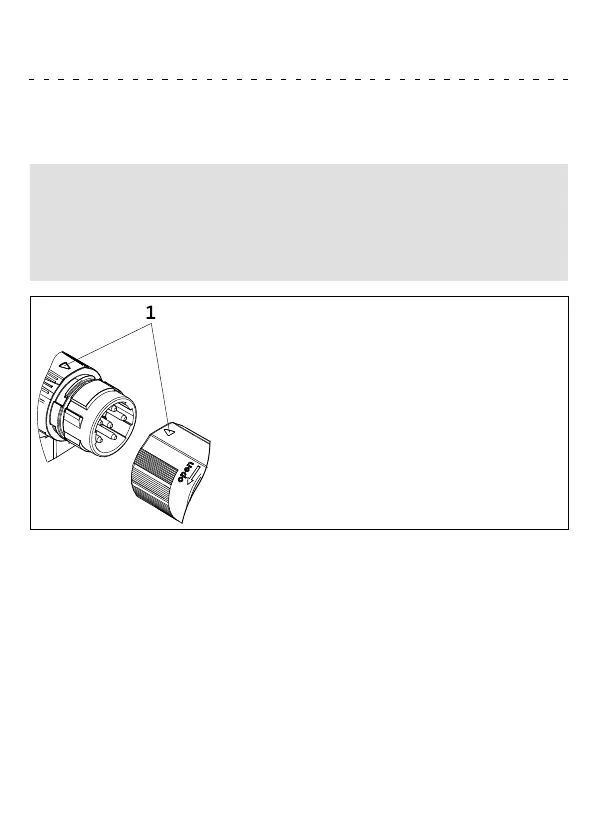

When connecting the cable connector to the motor connector, make sure that the aids to
orientation (pos. 1) are facing each other. Only then trouble-free operation is ensured.
