Lenze MCS Series User Manual

Electrical installation
Motor connection
Servo motors MDFQA 100/112/132/160, three-phase AC motors MDXMA
5

34
BA33.0001 EN 2.0

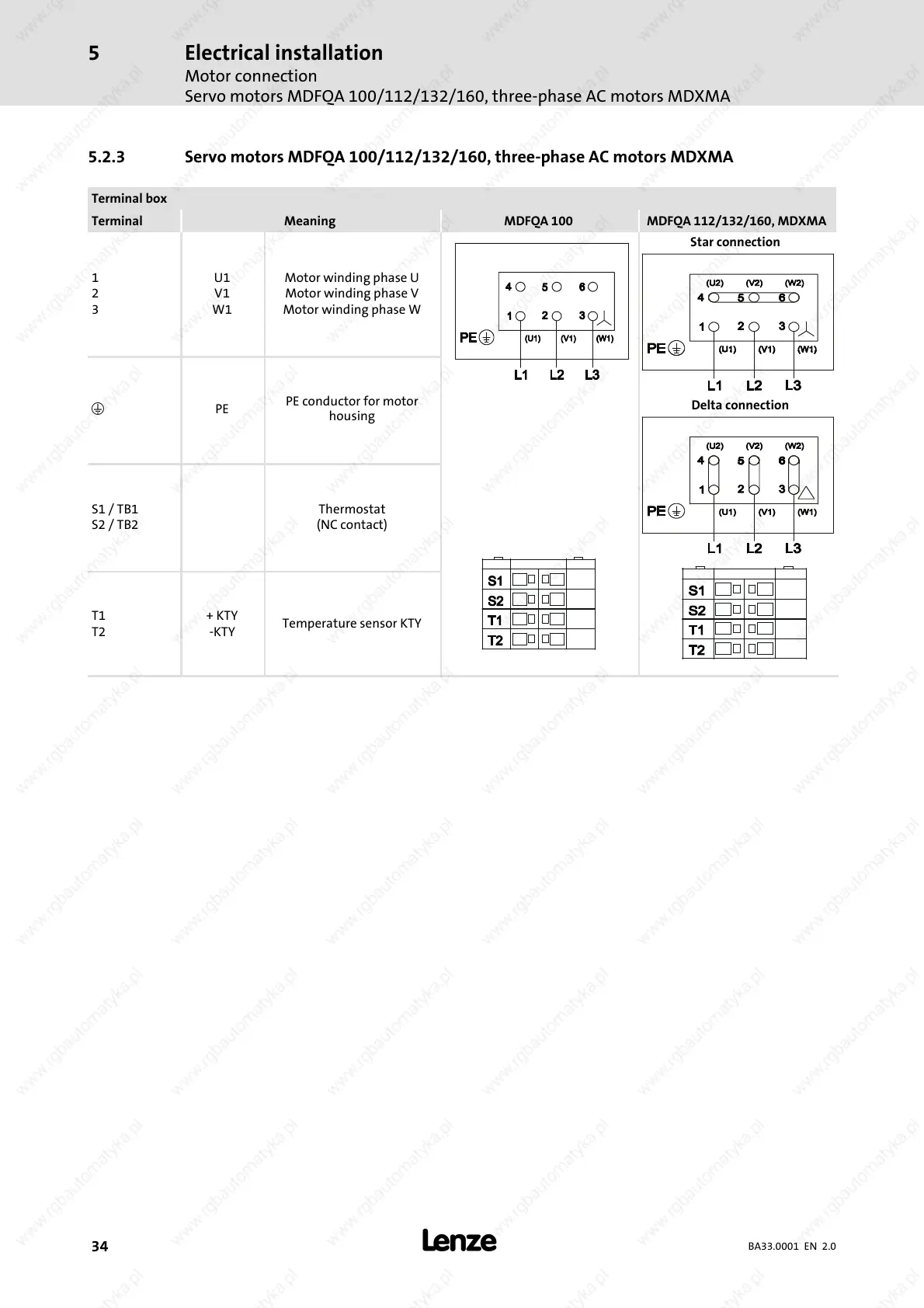

5.2.3 Servo motors MDFQA 100/112/132/160, three-phase AC motors MDXMA
Terminal box
Terminal Meaning MDFQA 100 MDFQA 112/132/160, MDX MA
1
2
3
U1
V1
W1
Motor winding phase U
Motor winding phase V
Motor winding phase W
Star connection
J
PE
PE conductor for motor
housing
Delta connection
S1 / TB1
S2 / TB2
Thermostat
(NC contact)
T1
T2
+KTY
-KTY
Temperature sensor KTY
