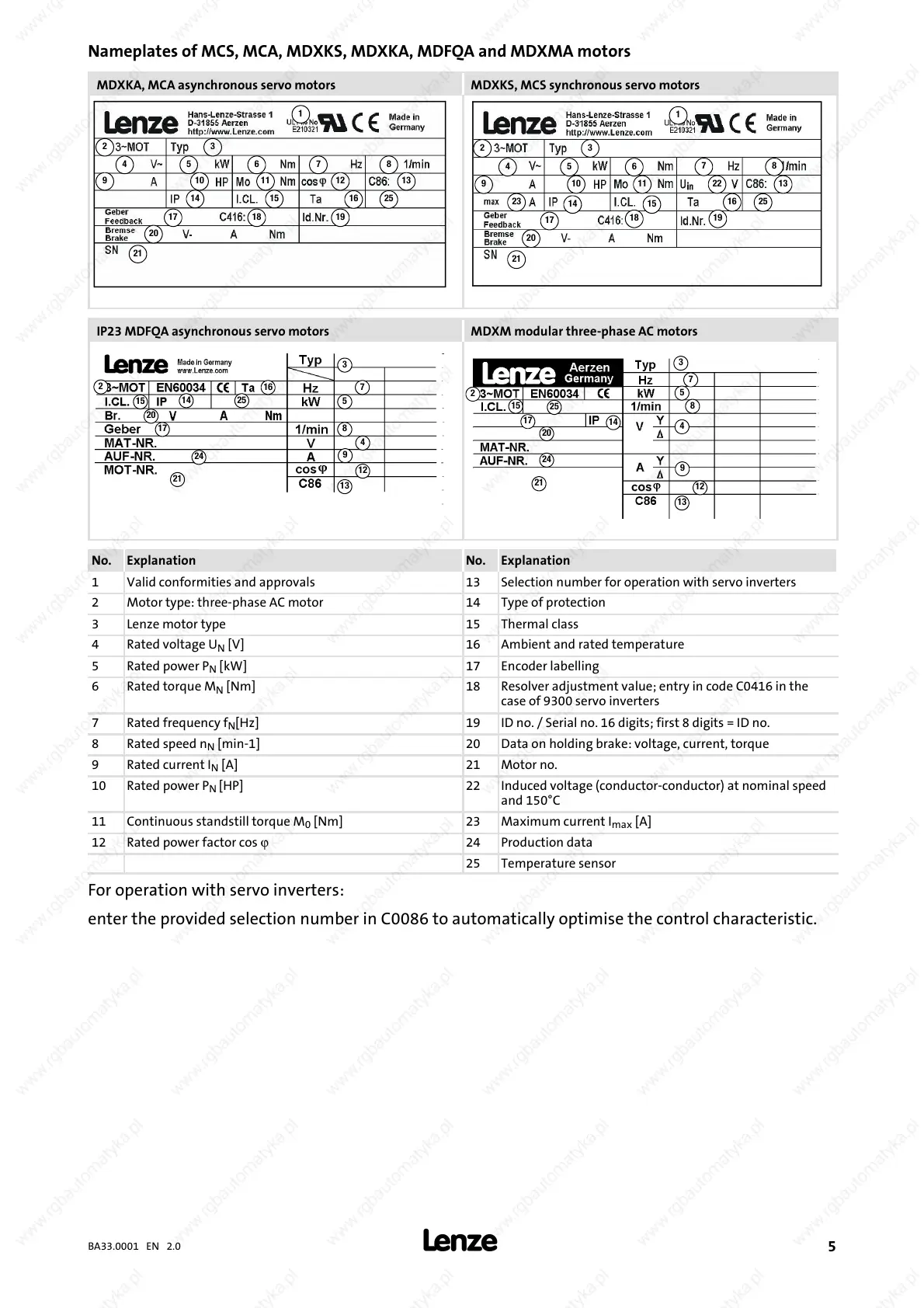

Nameplates of MCS, MCA, MDXKS, MDXKA, MDFQA and MDXMA motors
MDXKA, MCA asynchronous servo motors MDXKS, MCS synchronous servo motors
18 19
3
1
2
4 5 6 7 8
91011 12 13
14
20
15
16
17
21
25
18 19
3
1
2
4 5 6
14
20
15
25
17
21
7 8
9
10 11 22 13
23 16
IP23 MDFQA asynchronous servo motors MDXM modular three-phase AC motors
2
3
4
5
7
8
9
12
13
16
15
14
17
20
21
24
25
3
5
7
8
9
12
13
15
14
4
2
21
24
20
25
17
No. Explanation No. Explanation
1 Valid conformities and approvals 13 Selection number for operation with servo inverters
2 Motor type: three-phase AC motor 14 Type of protection
3 Lenze motor type 15 Thermal class
4 Rated voltage U
N
[V] 16 Ambient and rated temperature
5 Rated power P
N
[kW] 17 Encoder labelling
6 Rated torque M
N
[Nm] 18 Resolver ad justment va lue; entry in code C0416 in the
case of 9300 servo inverters
7 Rated frequency f
N
[Hz] 19 ID no. / Serial no. 16 d igits; first 8 digits = ID no.
8 Rated speed n
N
[min-1] 20 Data on holding brake: voltage, current, torque
9 Rated current I
N
[A] 21 Motor no.
10 Rated power P
N
[HP] 22 Induced voltage (conductor-conductor) at nominal speed
and 150°C
11 Continuous standstill torque M
0
[Nm] 23 Maximum current I
max
[A]
12 Rated power factor cos ϕ 24 Production data
25 Temperature sensor
For operation with servo inverters:
enter the provided selection number in C0086 to automatically optimise the control characteristic.
