Lenze ¯ EDKV800PEPCZ 1.0
1
¸
, Please read these instructions and the documentation of the standard device before you start
working!
Observe the safety instructions given therein!
These instructions are valid for:
Support arm adapter
v800−P/v200−P
43.9 cm (17.3") 61.0 cm (24")
EPCZMP1 x x
EPCZEBT801−000 x −
EPCZEBT901−000 − x
Target group
This documentation is intended for persons who install and commission the described product according to the
project requirements.
I Tip!
Information and tools concerning the Lenze products can be found in the download area at
www.lenze.com

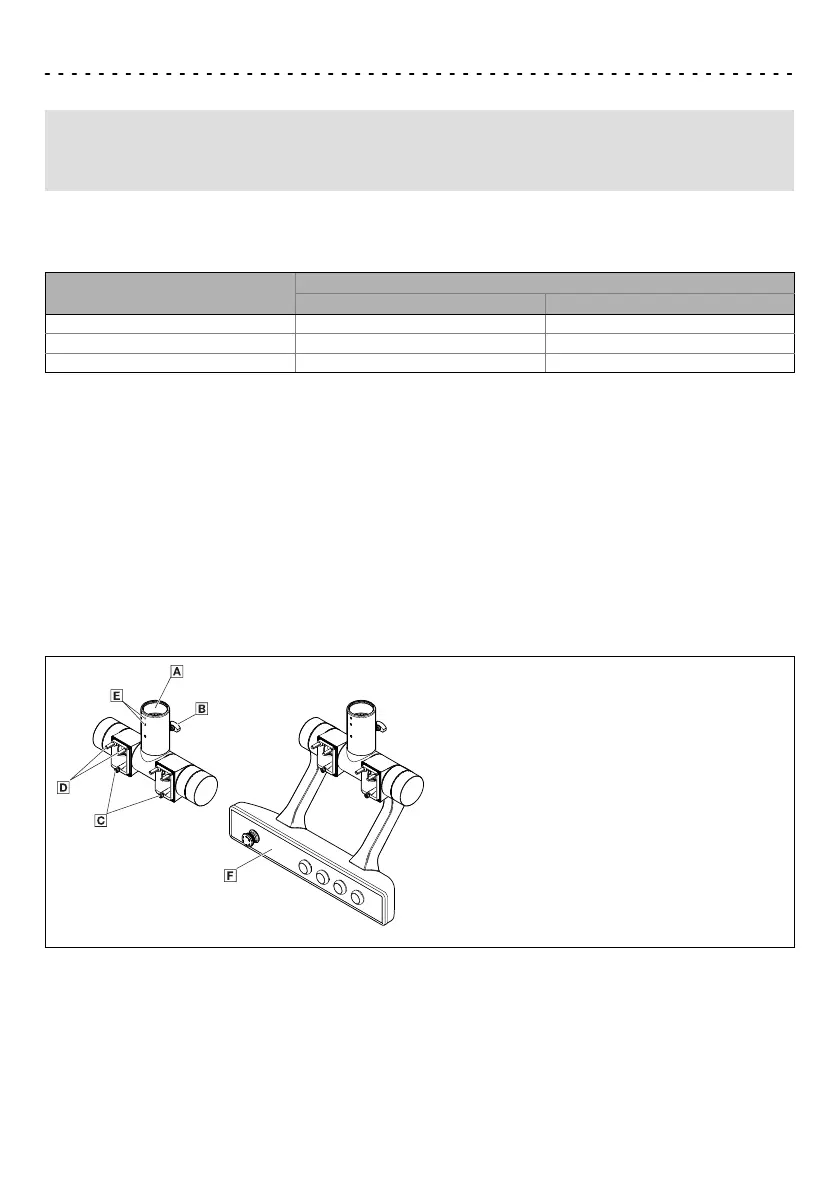

Overview
EPCZMP1 EPCZEBT801-000
EPCZEBT901-000
0 Holder for the support arm system (Æ 48 mm) provided by the customer
1
Wing screw for fixing the rotary T−piece connection
2
Cheese head screw M5 x 16 mm for connecting the support arm adapter to the standard device
3
Cylindrical pins for connecting the support arm adapter to the standard device
4
Threaded pin M6 x 4 mm for connecting the support arm adapter to the support arm system provided by
the customer
5
Switch box (option) for display and control elements provided by the customer
