LEOCH LFeLi-48100MB16 - Product Illustration and Interfaces

Integrated Lithium-ion Battery Pack For Telecom
User Manual
2 ILLUSTRATION
All Right Reserved © LEOCH International Technology Limited
8
2 ILLUSTRATION
2.1 Explanation of the structure

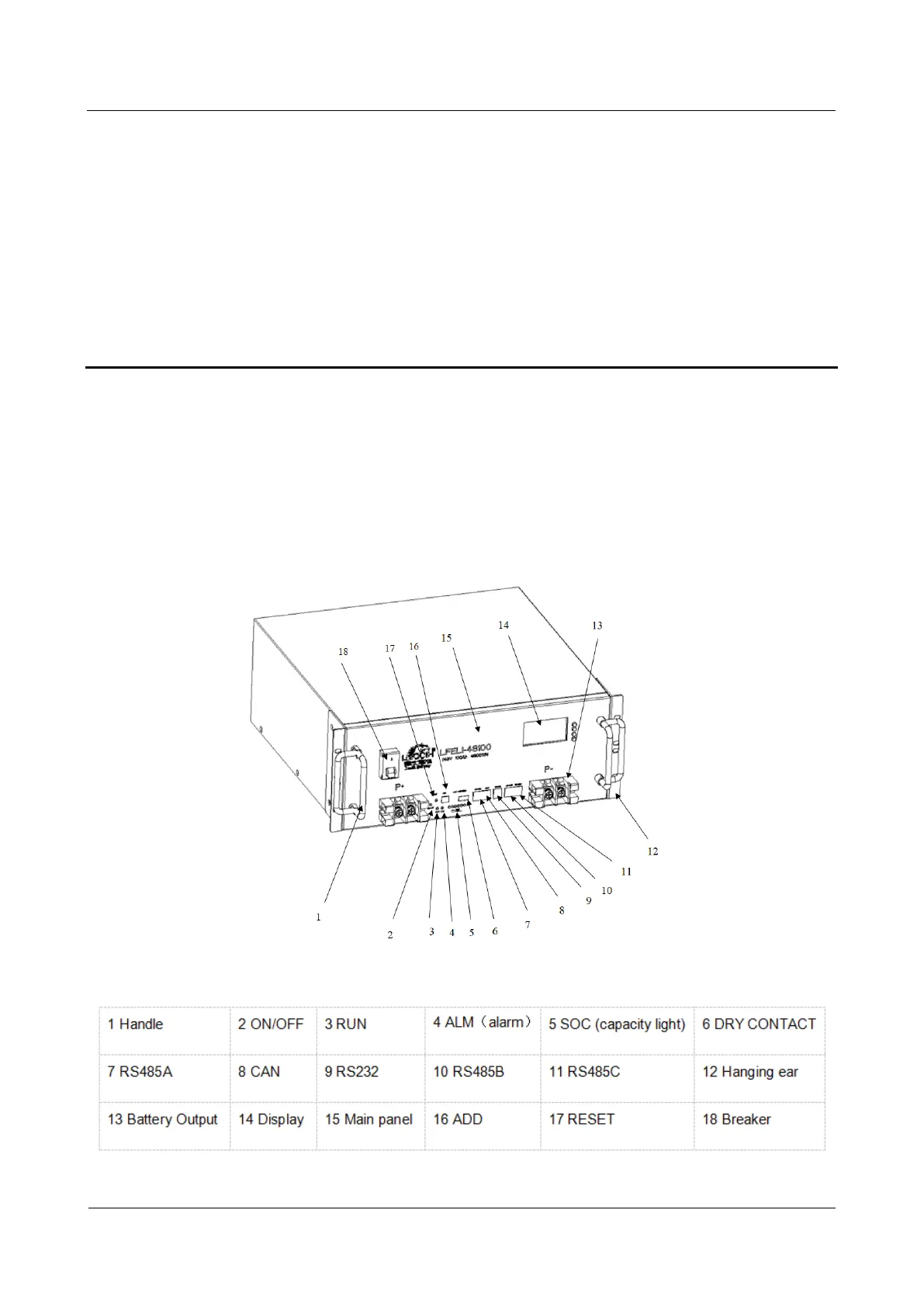

The structure of Lithium Ion battery pack as shown in figure 2-1.
Figure2-1 Product structure
